Variable Tumble Control System (VTCS) Shutter Valve Actuator Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION (BP) .) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION (BP WITH TC) .)
  2. Remove in the order indicated in the table.

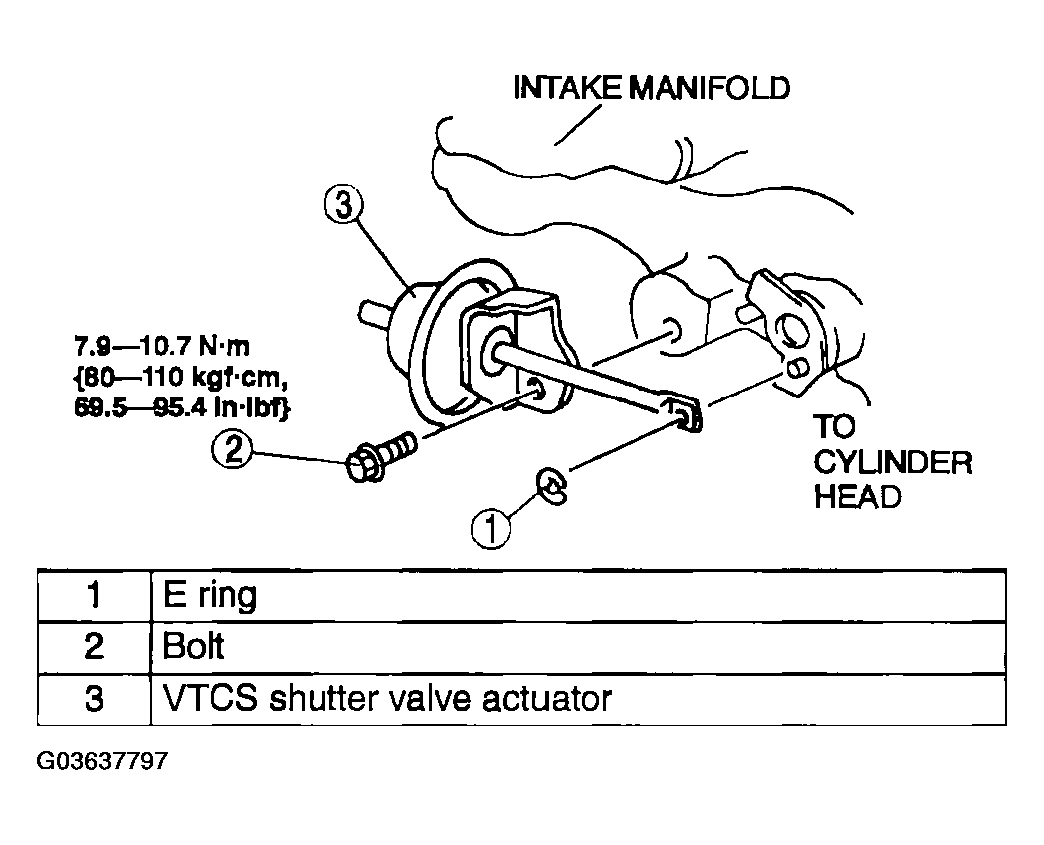

    Fig 1: Removing Intake-Air System & Torque Specifications
    G03637797Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
