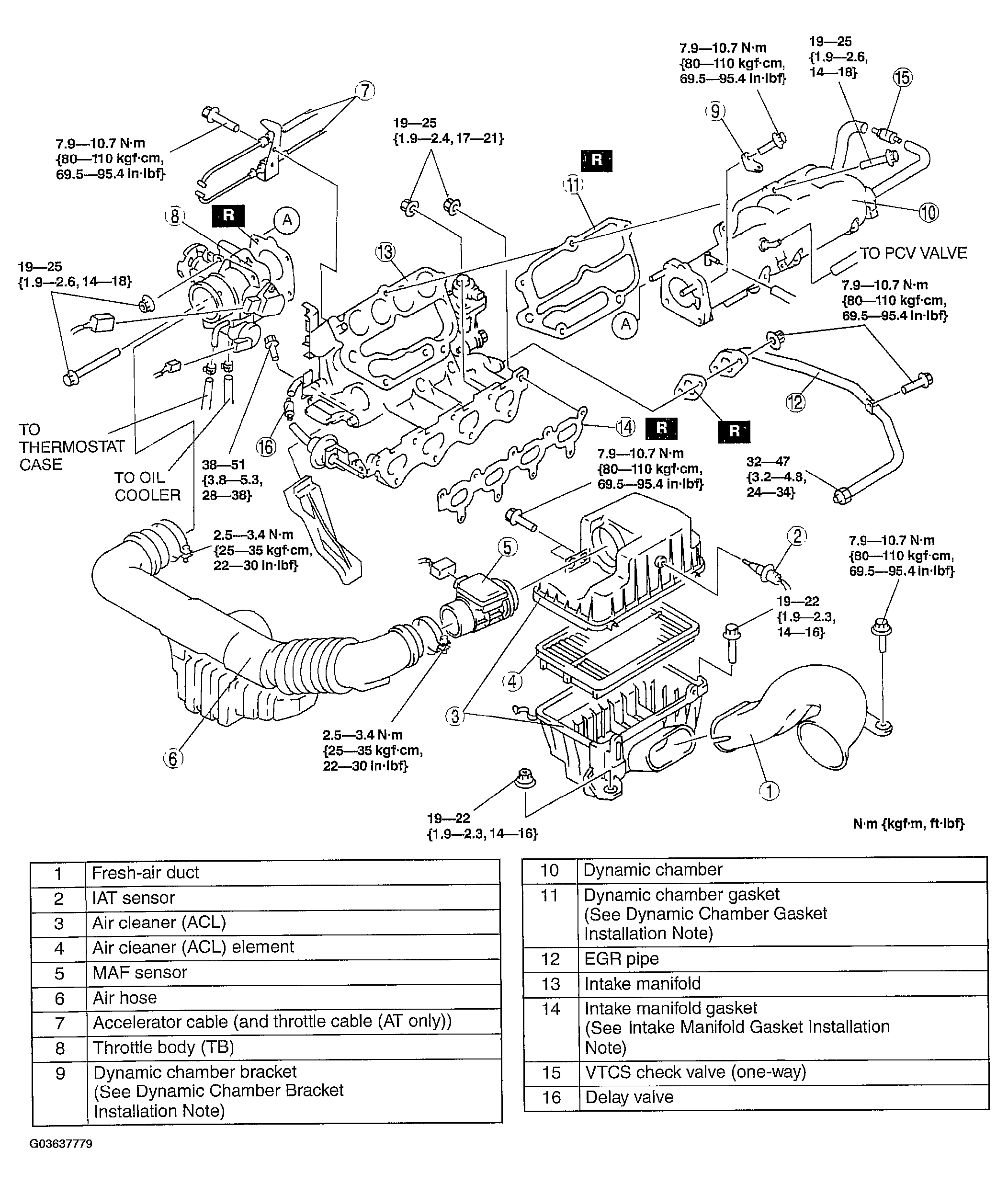

Intake-Air System Removal/Installation (BP): Notes
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Hot engines and the intake-air system can cause severe burns. Turn off the engine and wait until it and the intake-air system are cool before removing the intake-air system.
- Disconnect the negative battery cable.
- Drain the engine coolant from the radiator. (See ENGINE COOLANT REPLACEMENT .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Refill the radiator engine coolant. (See ENGINE COOLANT REPLACEMENT .)
