Intake-Air System Removal/Installation (BP With TC): Step1
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

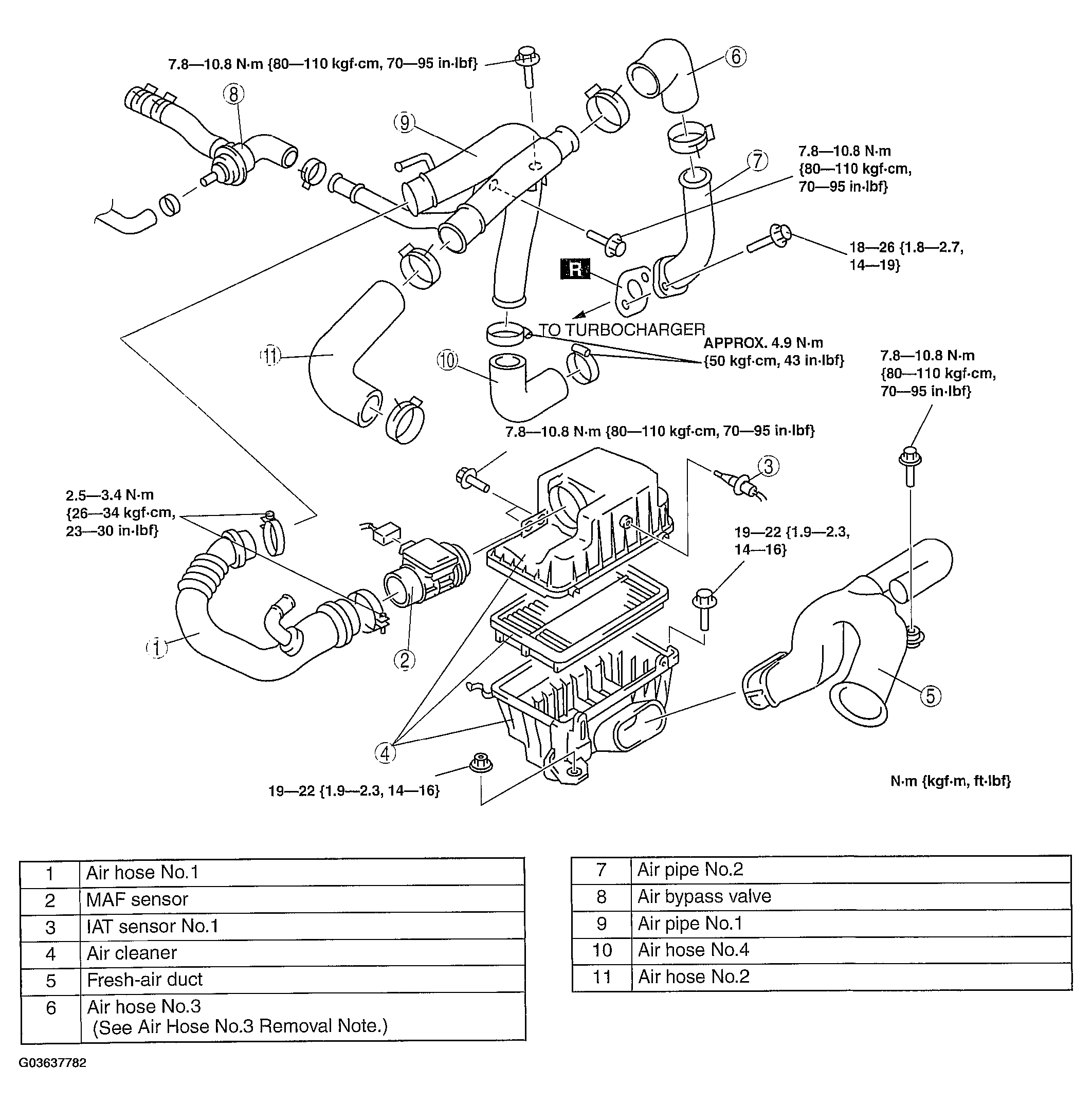

Fig 1: Exploded View Of Intake-Air System (BP With TC) (Step1) & Torque Specifications
