Charge Air Cooler Removal/Installation (BP With TC)

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

A hot engine and intake air system can cause severe burns. Turn off the engine and wait until all components are cool before removing the intake air system.

Disconnect the negative battery cable.
Remove the under cover.
Remove the cover with the charge air cooler bottom for easier access.
Remove in the order indicated in the table.
Install in the reverse order of removal.

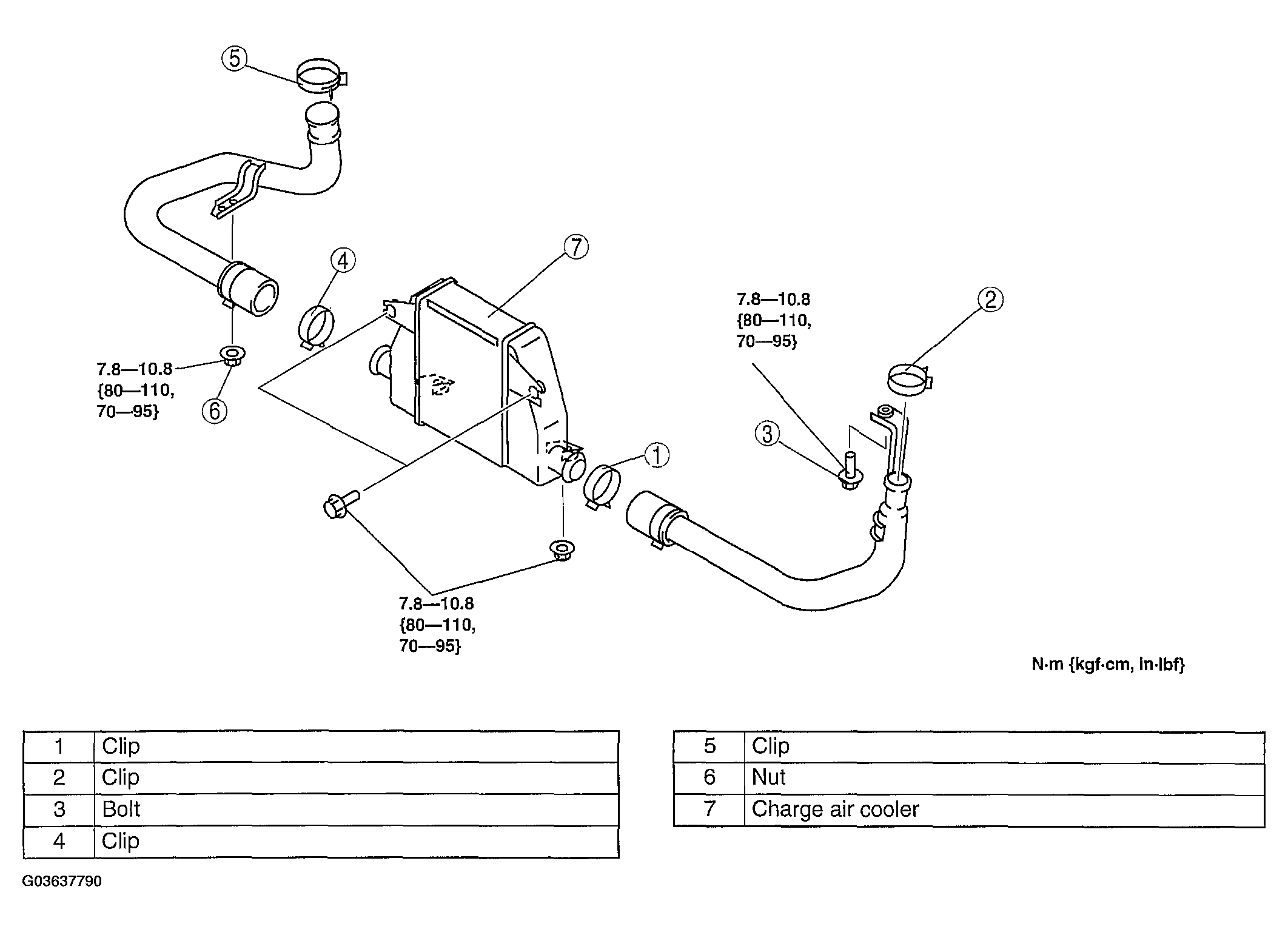

Fig 1: Exploded View Of Charge Air Cooler (BP With TC) & Torque Specifications
Courtesy of MAZDA MOTORS CORP.
