Radiator Removal/Installation [BP With TC]

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Remove and install all parts when the engine is cold, otherwise they can cause severe burns or serious injury.

Disconnect the negative battery cable.
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Remove the air hose No.1 and No.2. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [BP WITH TC] .)
Set the air pipe No.3 out of the way.
Remove in the order indicated in the table.
Install in the reverse order of removal.

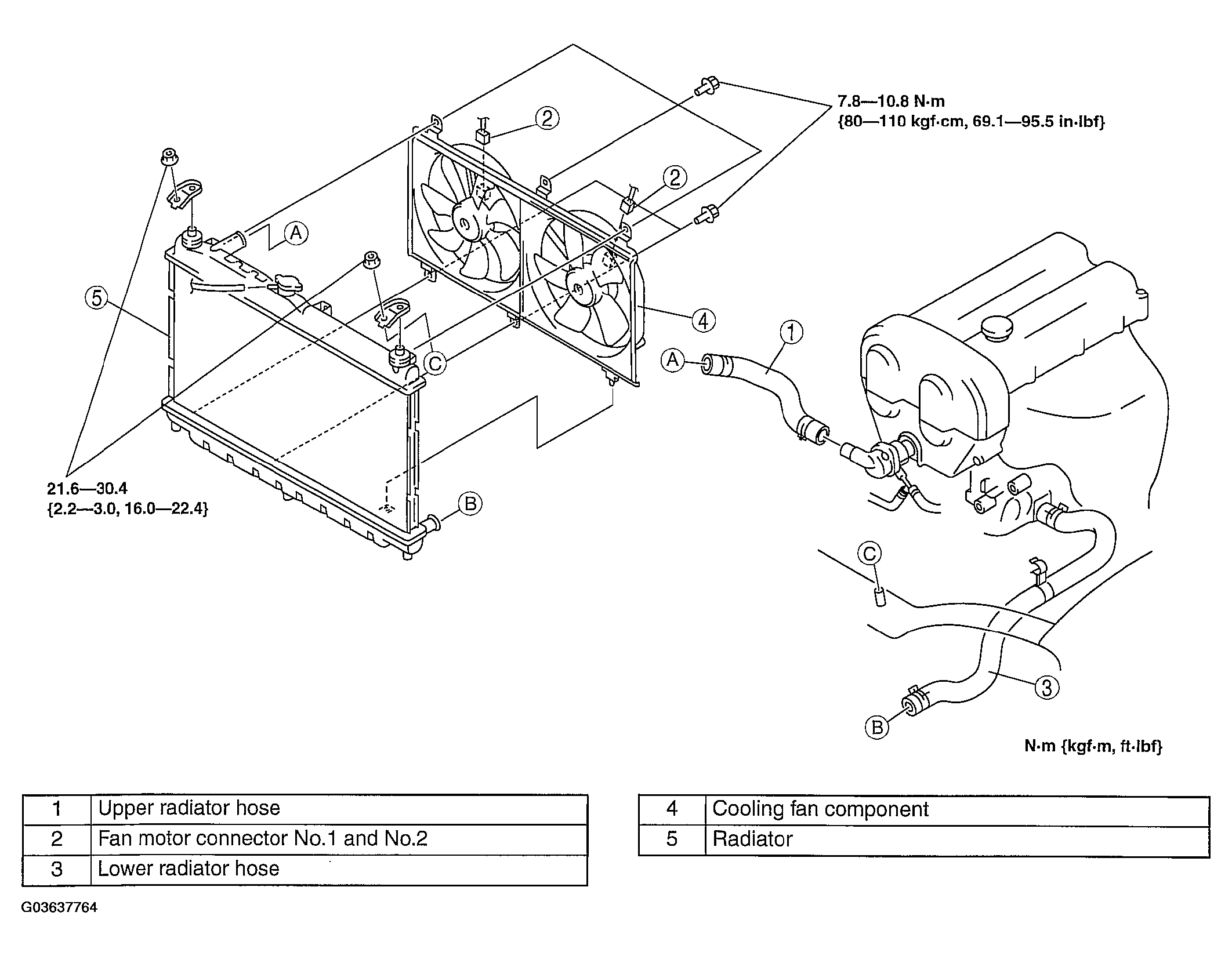

Fig 1: Exploded View Of Radiator With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Add engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION .)
