Oil Pump Removal Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil seal using a flathead screwdriver protected with a rag.

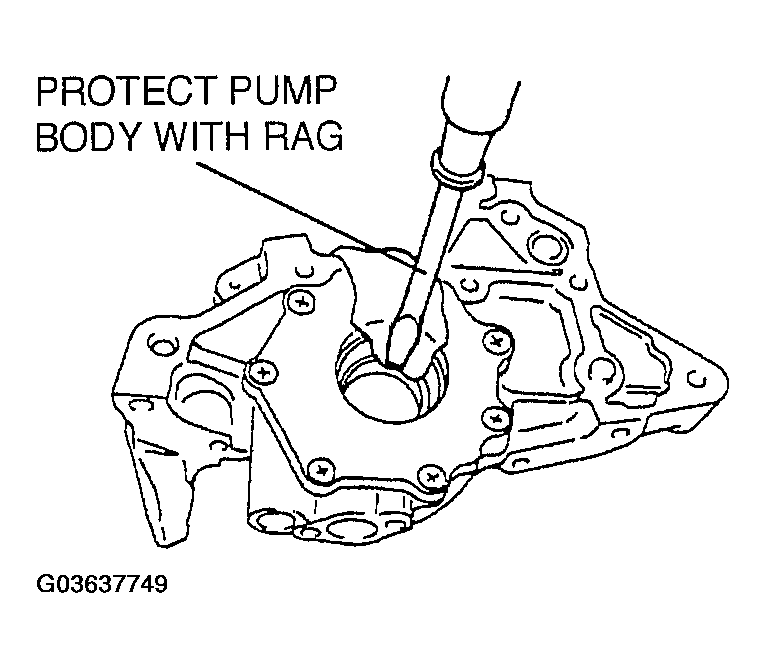

    Fig 1: Removing Oil Seal Using Flathead Screwdriver
    G03637749Courtesy of MAZDA MOTORS CORP.
