Oil Pump Removal/Installation: Notes
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the timing belt. (See TIMING BELT REMOVAL/INSTALLATION .)
- Remove the timing belt pulley.
- Remove the oil pan. (See OIL PAN REMOVAL/INSTALLATION [BP] .) (See OIL PAN REMOVAL/INSTALLATION [BP WITH TC] .)
- Remove the A/C compressor with the pipe still connected.
- Remove the A/C compressor bracket.
- Remove the generator. (See GENERATOR REMOVAL/INSTALLATION .)

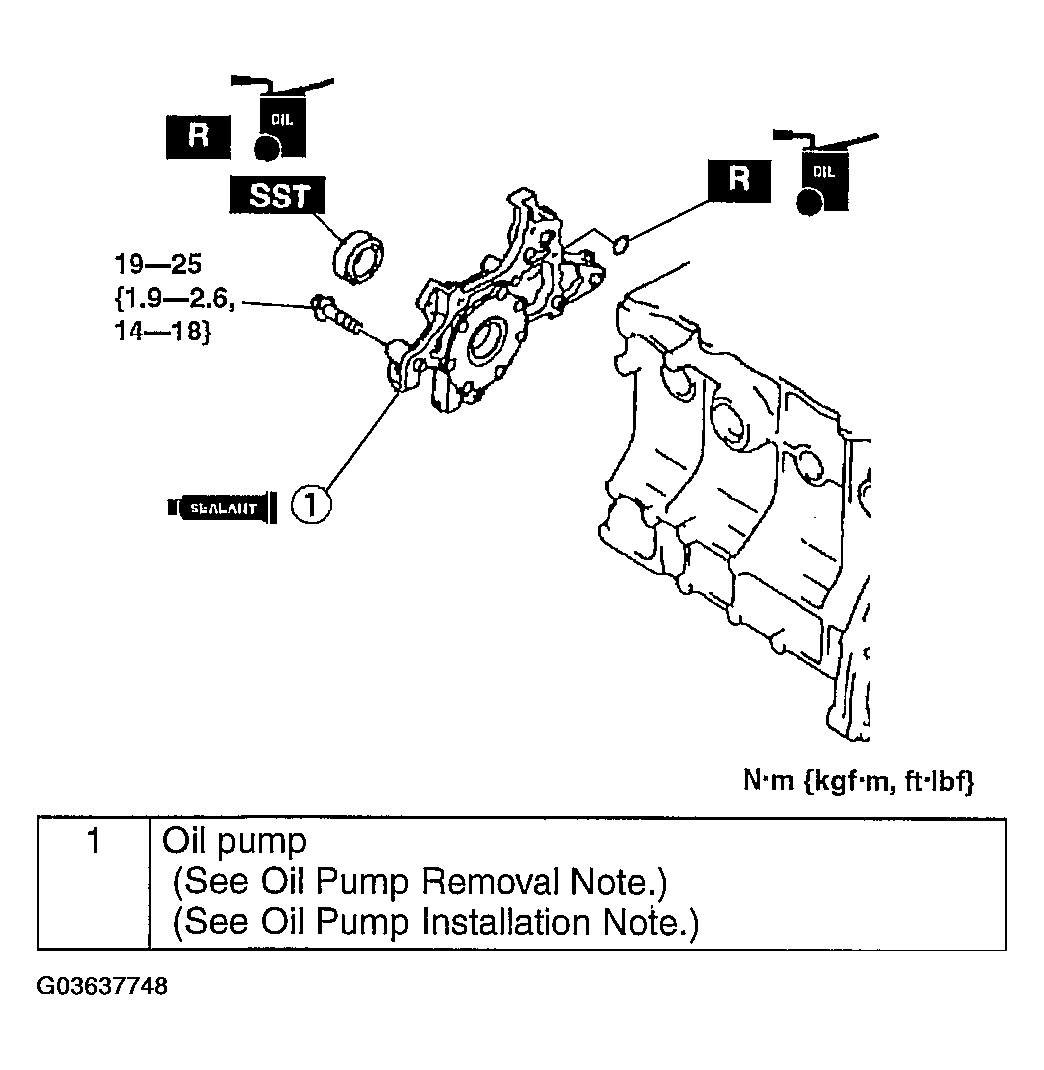

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
