Oil Pump Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump. (See OIL PUMP REMOVAL/INSTALLATION .)
  2. Disassemble in the order indicated in the table.

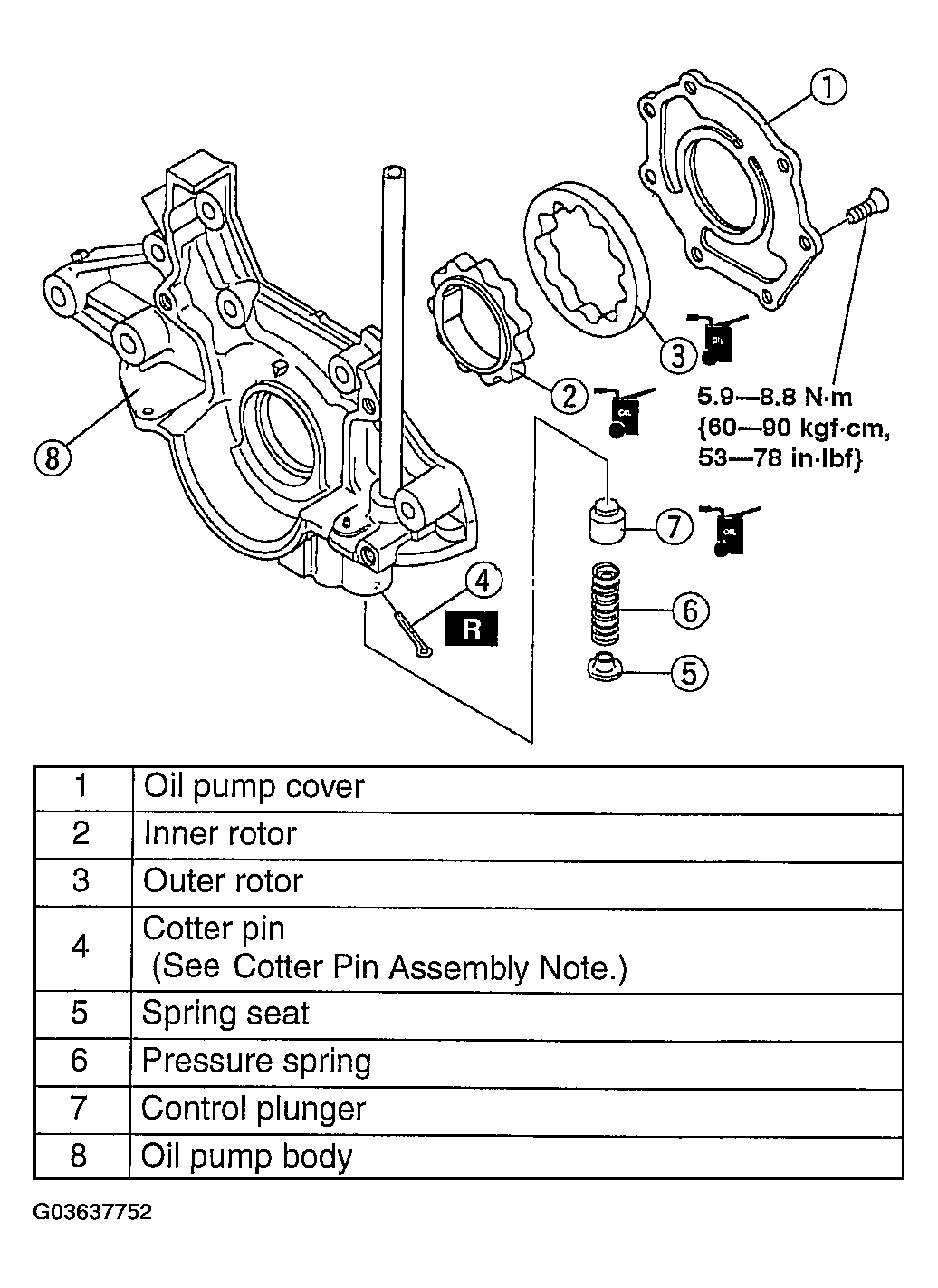

    Fig 1: Removing Oil Pump & Torque Specifications
    G03637752Courtesy of MAZDA MOTORS CORP.
  3. Assemble in the reverse order of disassembly.
