Main Bearing Support Plate Installation Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Apply liquid gasket of SH780 or TB1207B to main bearing support plate ceaselessly as shown in the figure.

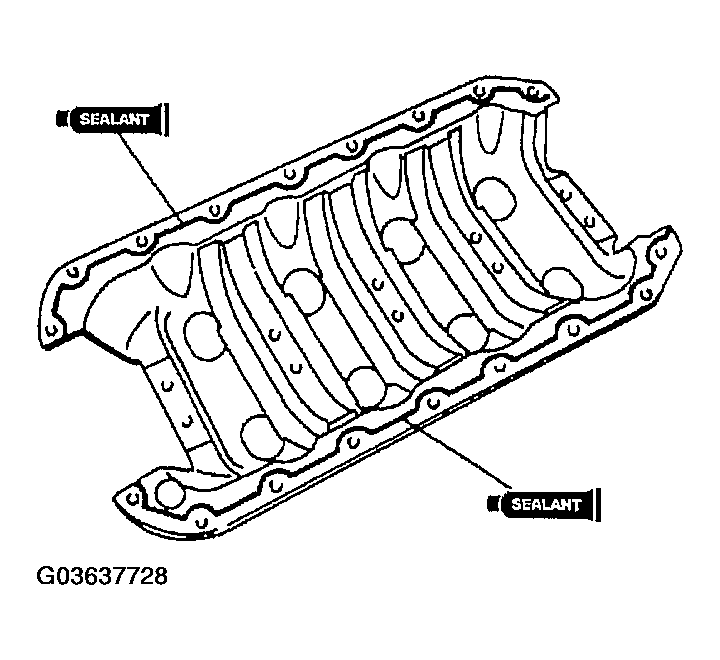

Fig 1: Applying Liquid Gasket To Main Bearing Support Plate
Courtesy of MAZDA MOTORS CORP.

Thickness
1. THETA 2.5-3.5 mm {0.099-0.137 in}
