Engine Oil Replacement

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Hot engines and the engine oil can cause severe burn. Do not burn yourself with either.
  • A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.
  • Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.
  1. Position the vehicle on level ground.
  2. Remove the oil filler cap and the oil pan drain plug.
  3. Drain the oil into a container.
  4. Install the drain plug with new washer.

    Tightening torque

    1. 30-41 N.m {3.0-4.2 kgf.m, 22-30 ft.lbf}
  5. Add the engine with the specified type and amount of engine oil.
    NOTE:
    • The actual oil level may vary from the specified capacity in some cases.
    Oil capacity L {US qt.Imp qt}
    Item Specification
    Oil replacement 3.6 {3.8, 3.2}
    Oil and oil filter replacement 3.8 {4.0, 3.3}
    Total (dry engine) 4.0 {4.2, 3.5}

    Engine oil specification

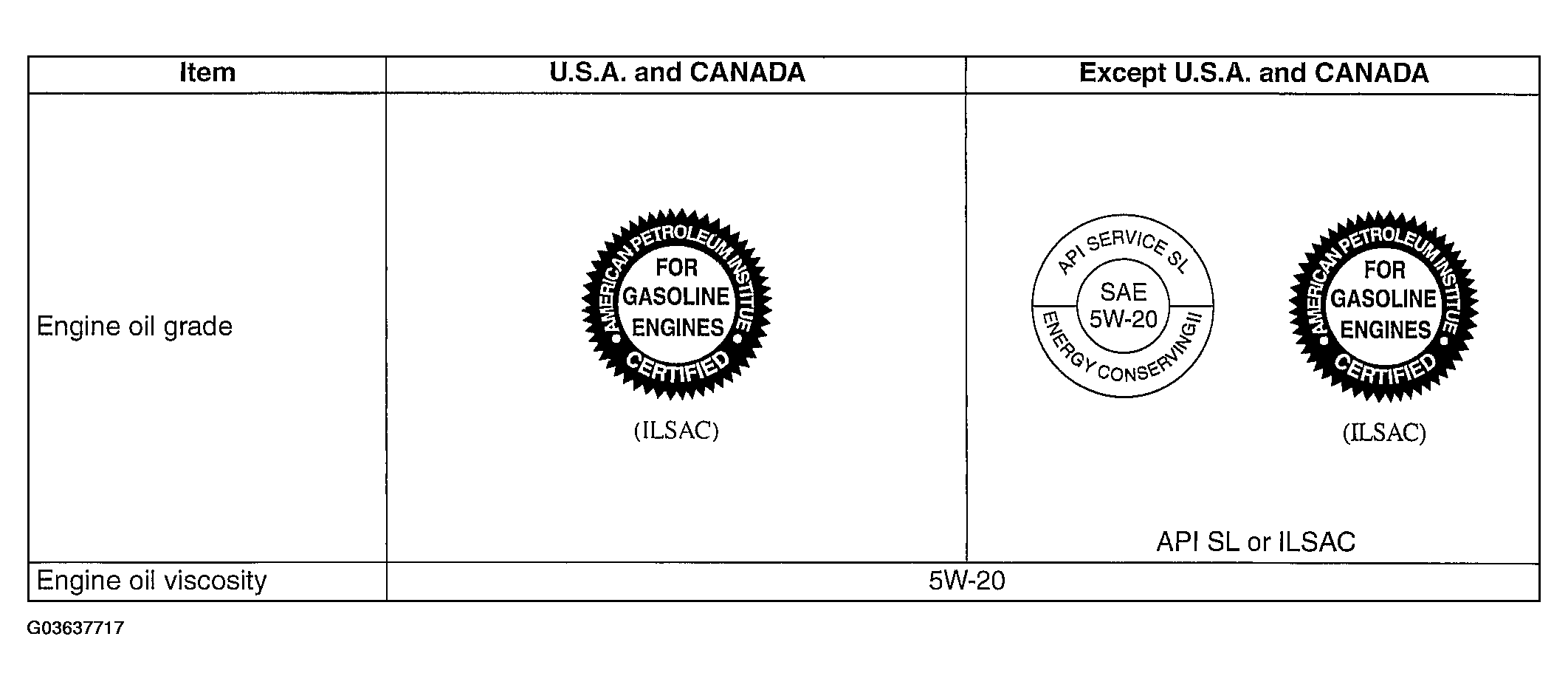

    Fig 1: Engine Oil Specification Chart
    G03637717Courtesy of MAZDA MOTORS CORP.
  6. Install the oil filler cap.
  7. Run the engine and inspect for oil leakage.
  8. Inspect the oil level.
