Timing Belt Removal Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Install the pulley boss on the crankshaft to temporarily tighten with pulley lock bolt.

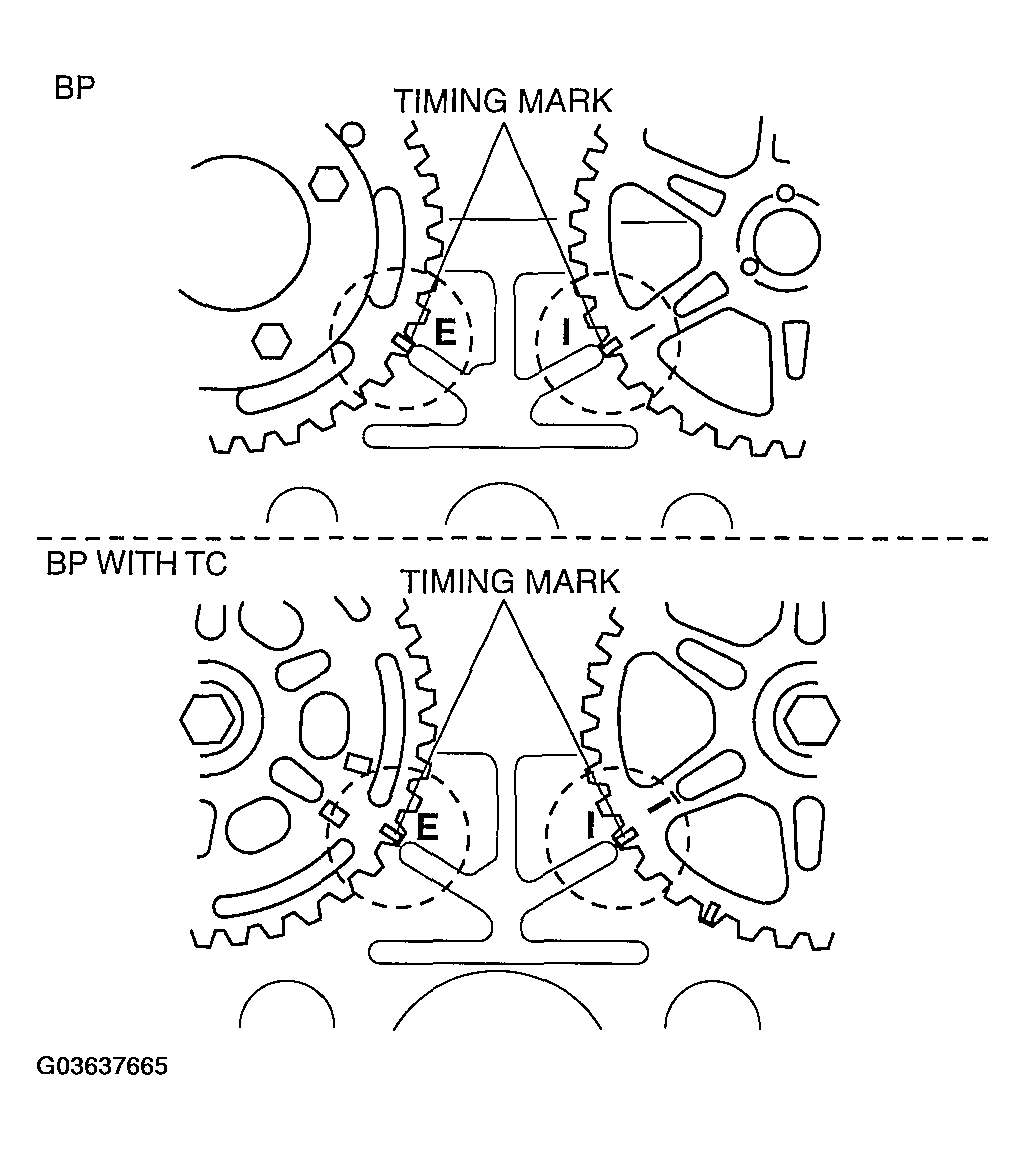

Rotate the crankshaft in the appropriate direction to meet the timing mark.

Fig 1: Rotating Crankshaft Of Appropriate Direction Timing Mark
Courtesy of MAZDA MOTORS CORP.
NOTE:
- It is preferable that the positioning pins of the pulley boss are just above the timing marks.
Fig 2: Positioning Pins Of Pulley Boss
Courtesy of MAZDA MOTORS CORP.

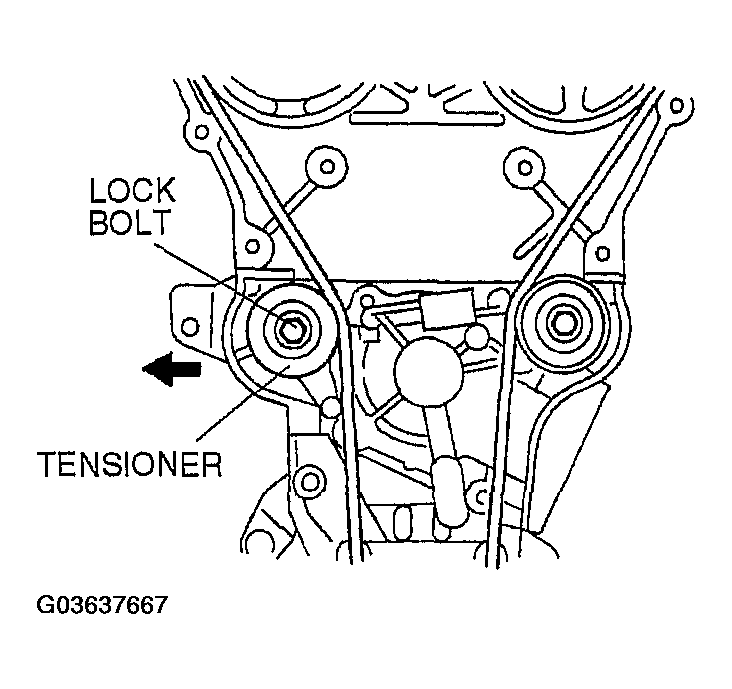

Loosen the tensioner lock bolt and temporarily tighten the tensioner lock bolt while pulling the tensioner to the left.

Fig 3: Loosening Tensioner Lock Bolt
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- The following will damage the belt and shorten its life; forcefully twisting it, turning it inside out, or allowing oil or grease on it.

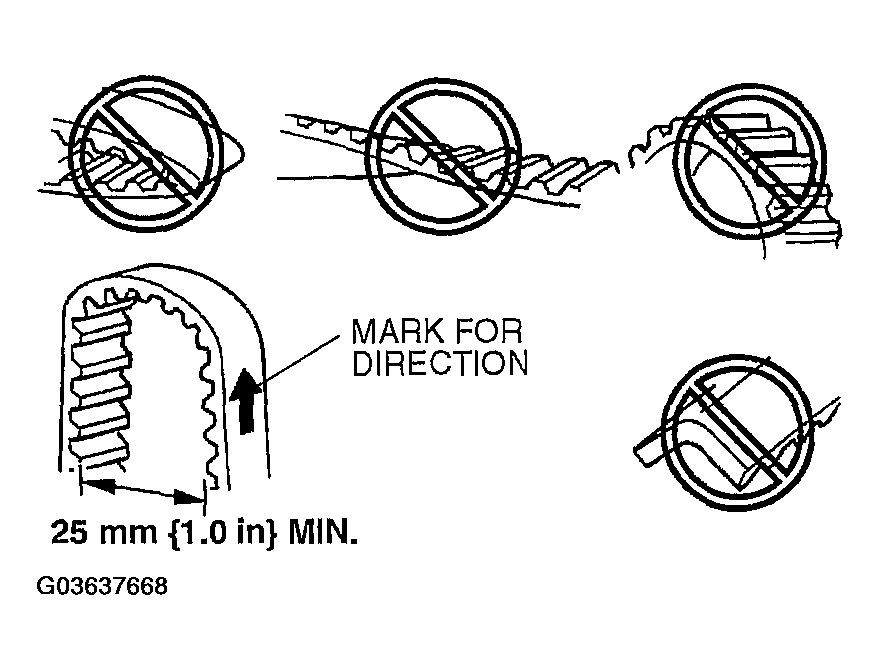

  Fig 4: Locating Timing Belt Mark Direction
  Courtesy of MAZDA MOTORS CORP.
NOTE:
- Mark the timing belt rotation on the belt for proper reinstallation.
