Tensioner and Tensioner Spring Installation Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Measure the tensioner spring free length.
- If not within the specification, replace the tensioner spring.
Free length
1. 59.2 mm {2.33 in}
Install the tensioner.

Fig 1: Measuring Tensioner Spring Free Length
Courtesy of MAZDA MOTORS CORP.

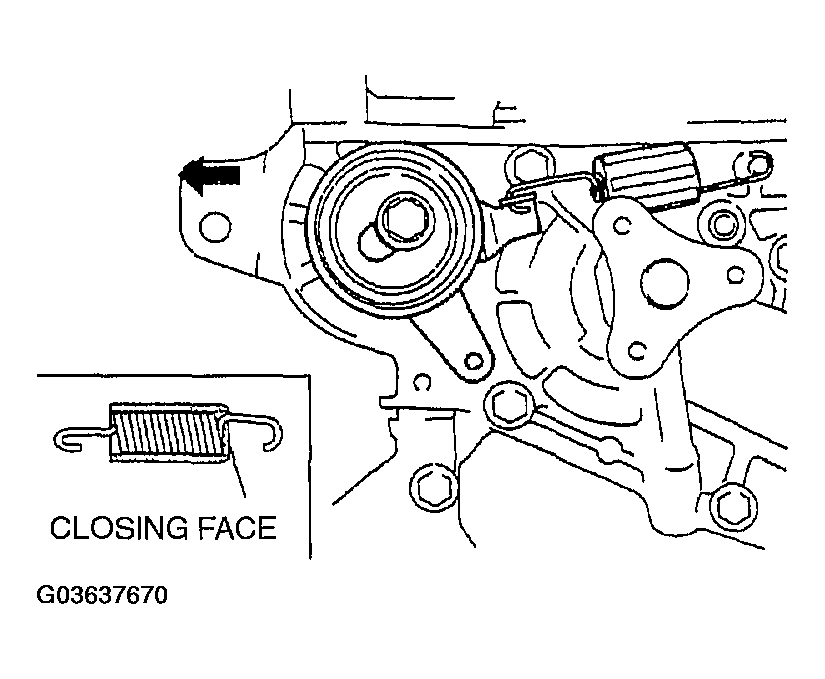

Install the tensioner spring with the damper rubber closing face on the right side.
Temporarily secure the tensioner with the spring fully extended.

Fig 2: Installing Tensioner Spring With Damper Rubber
Courtesy of MAZDA MOTORS CORP.
