Camshaft Removal Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

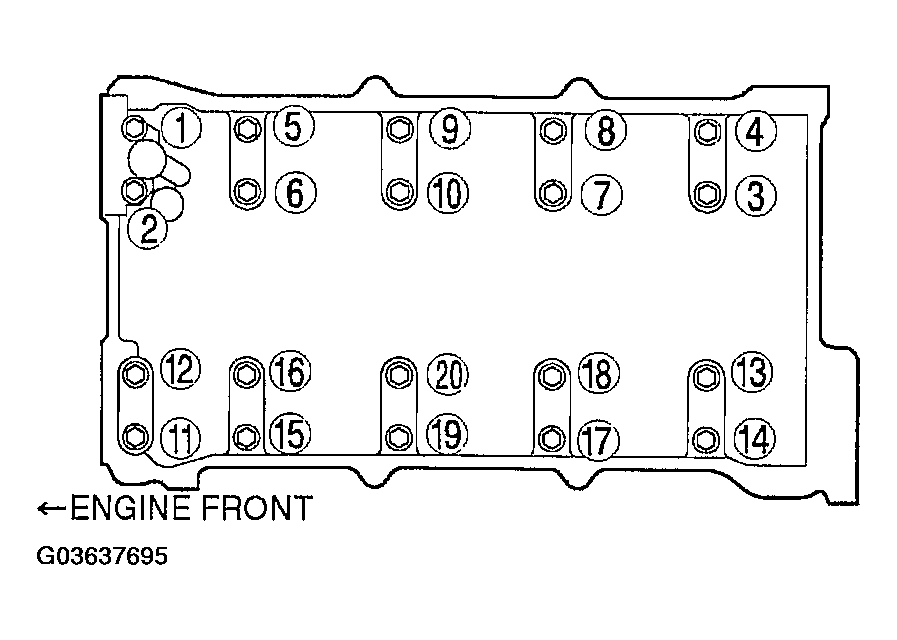

  1. Loosen the camshaft cap bolts in two or three steps in the order shown.
  2. Remove the camshaft caps.
    Fig 1: Removing Camshaft Caps
    G03637695Courtesy of MAZDA MOTORS CORP.
