Rear Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flywheel. (MT) (See CLUTCH UNIT REMOVAL/INSTALLATION .)
  2. Remove the drive plate. (AT) (See DRIVE PLATE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

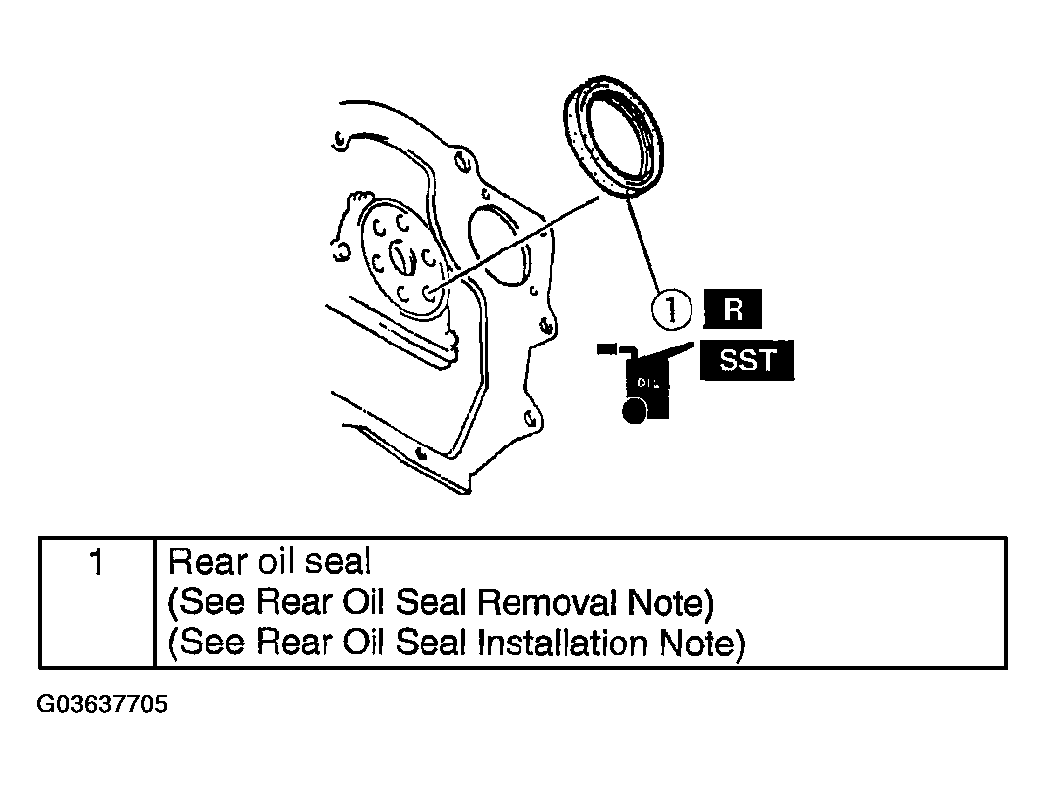

    Fig 1: Identifying Rear Oil Seal
    G03637705Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
