Engine Removal Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the SST  to the position shown in Fig 1 using the suitable washer and air pipe No.1 installation bolt.

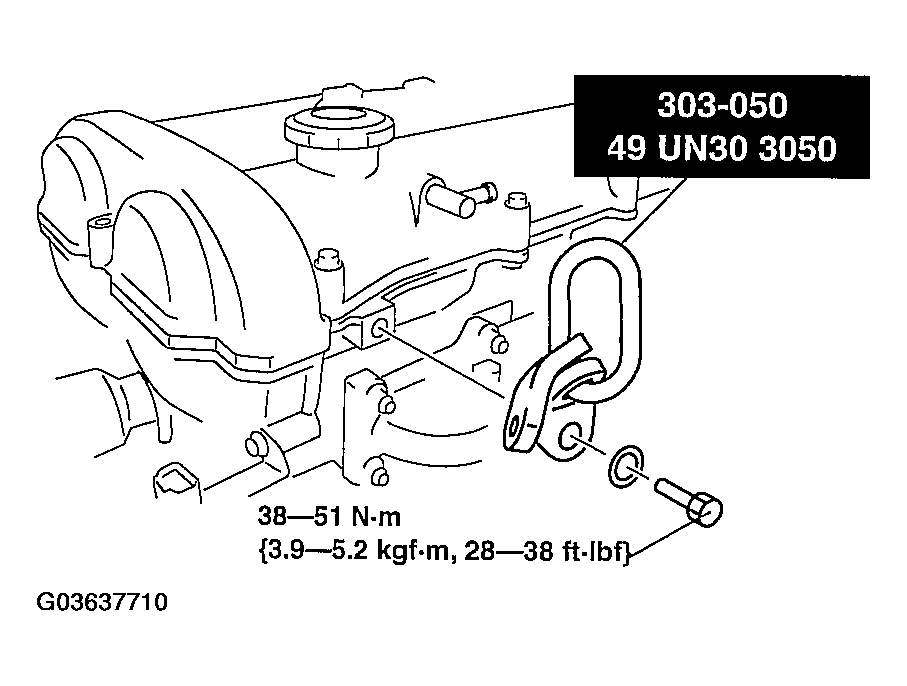

    Fig 1: Installing Bolt Using Suitable Washer And Air Pipe & Torque Specification
    G03637710Courtesy of MAZDA MOTORS CORP.
