Data link connector

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Insert the probe into the terminal when connecting a jumper wire to the data link connector.
CAUTION:
- Inserting a jumper wire probe into the data link connector terminal may damage the terminal.

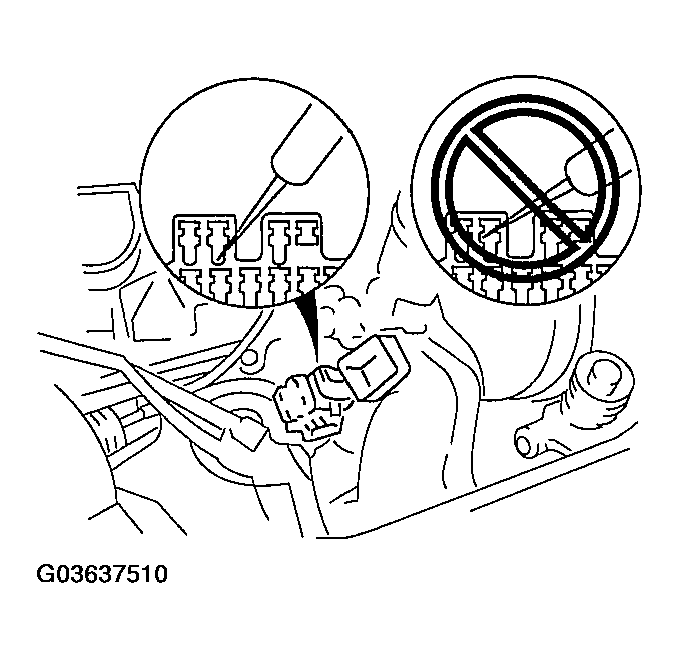

Fig 1: Inserting A Jumper Wire Probe Into Data Link Connector
Courtesy of MAZDA MOTORS CORP.
