Horn Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Slightly bend back the mudguard.
  3. Remove in the order indicated in the table.

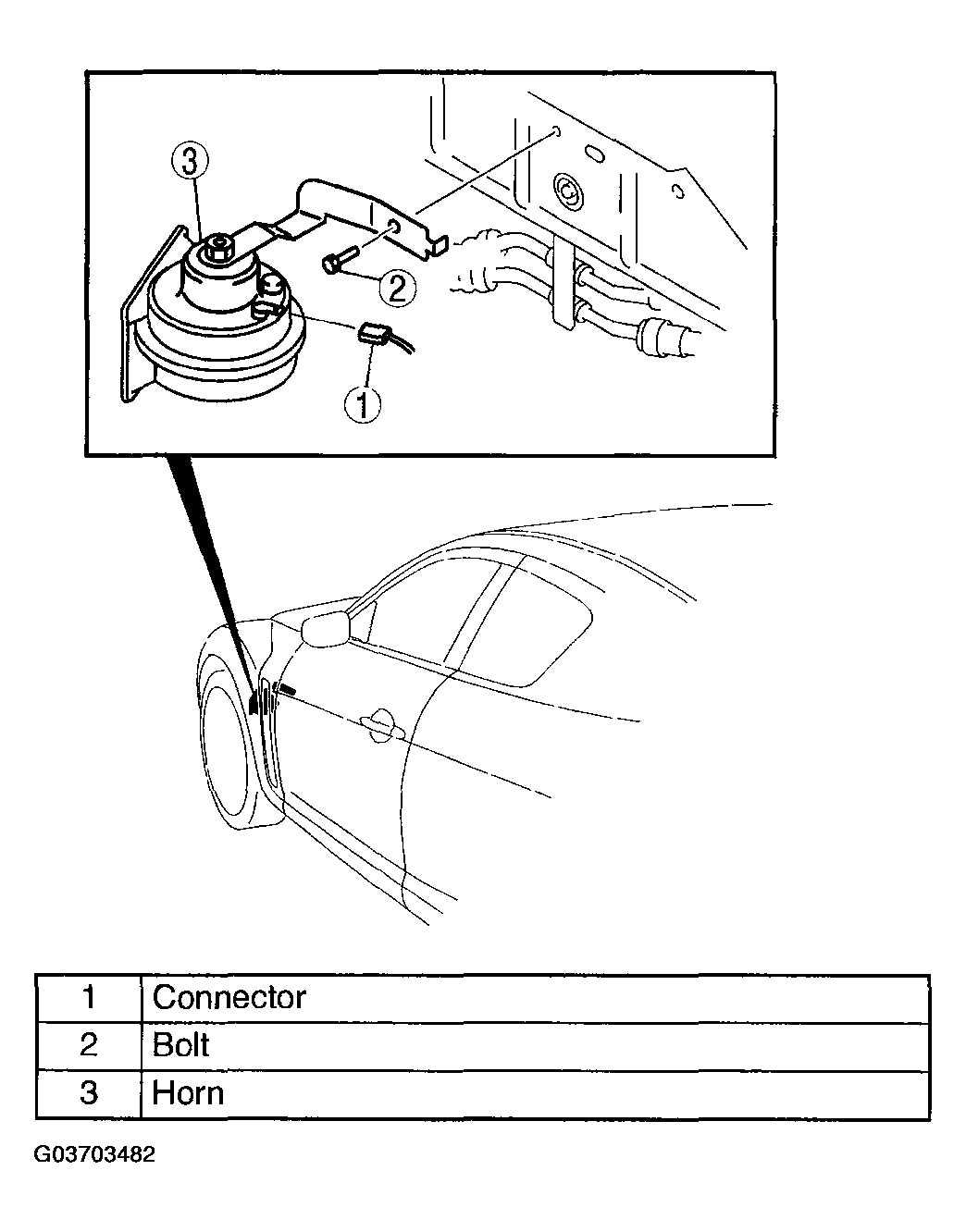

    Fig 1: Removal And Installation Of Horn Components
    G03703482Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
