Fuel Gauge Sender Unit (Main): Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat. (See REAR SEAT REMOVAL/INSTALLATION .)
  2. Drain the fuel from the fuel tank. (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
  3. Disconnect the negative battery cable.
  4. Remove the fuel pump unit. (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the table.

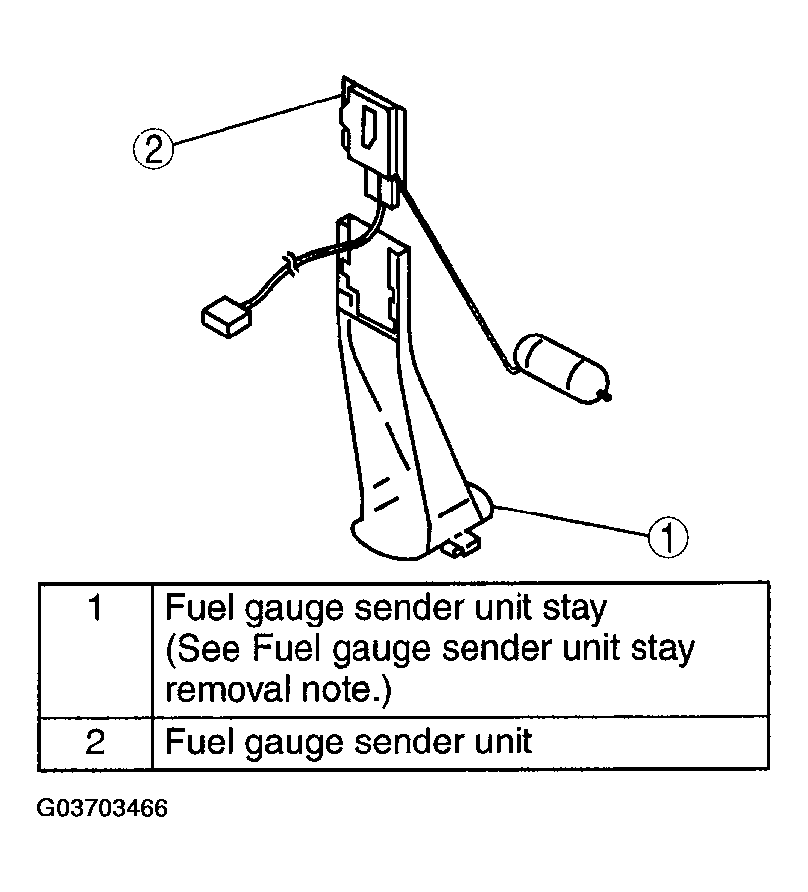

    Fig 1: Removal And Installation Of Fuel Gauge Sender Unit - Main
    G03703466Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
