Fuel Gauge Sender Unit (Sub)

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the float to the topmost and bottommost positions, and verify that the resistance between terminals A and B of the fuel gauge sender unit (sub) and the position of the float are as shown in the figure.
    • If they are not as shown in the figure, replace the fuel gauge sender unit (sub).

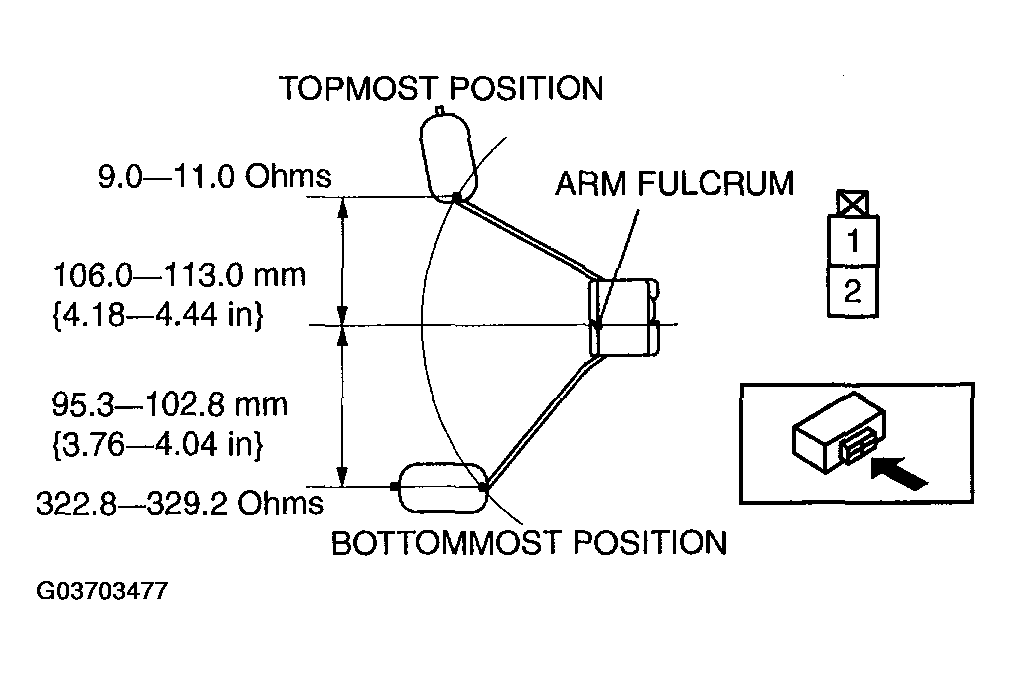

    Fig 1: Inspecting Fuel Gauge Sender Unit - Sub
    G03703477Courtesy of MAZDA MOTORS CORP.
