Windshield Wiper Arm And Blade Adjustment
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Operate the windshield wipers, and turn off the windshield wiper motor to set the wipers in the park position.

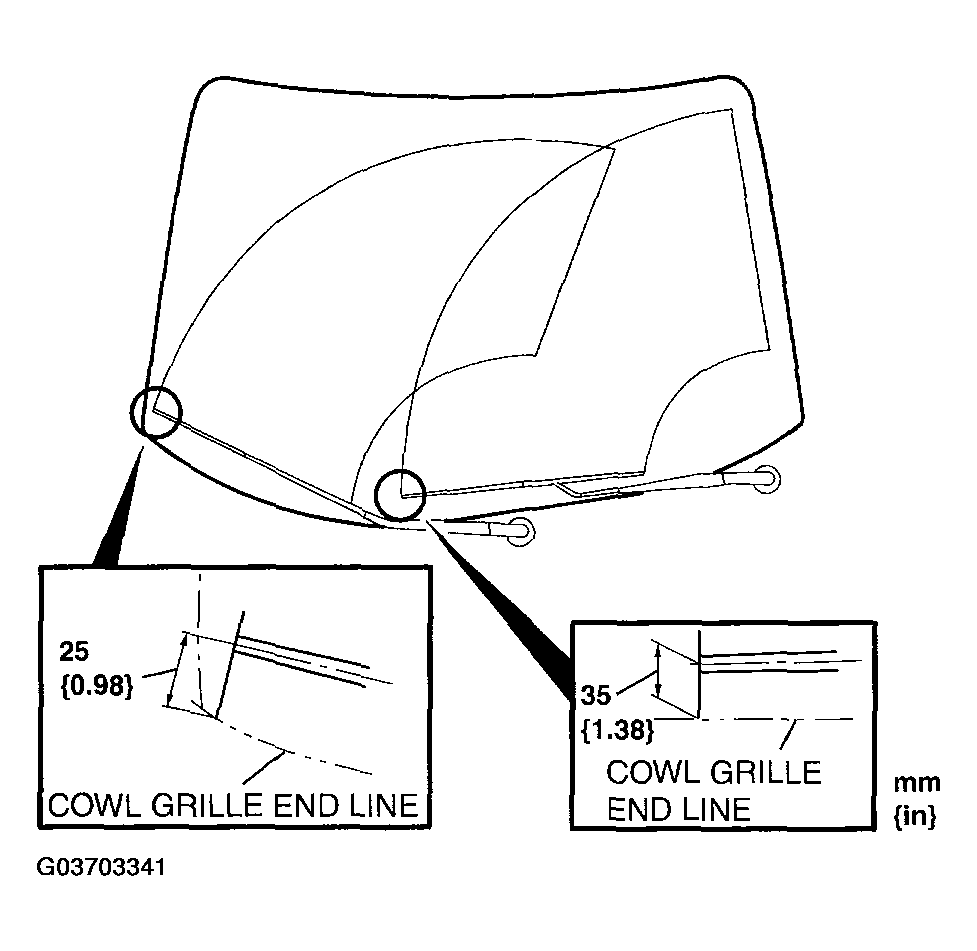

- Adjust the windshield wiper arm connector shafts to set the arm heights as shown.
Courtesy of MAZDA MOTORS CORP.
