Windshield Wiper And Washer Switch Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove the ignition key illumination. (See IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION .)
  4. Disconnect the windshield wiper and washer switch connector.
  5. Remove the screws, then remove the windshield wiper and washer switch.
  6. Install in the reverse order of removal.

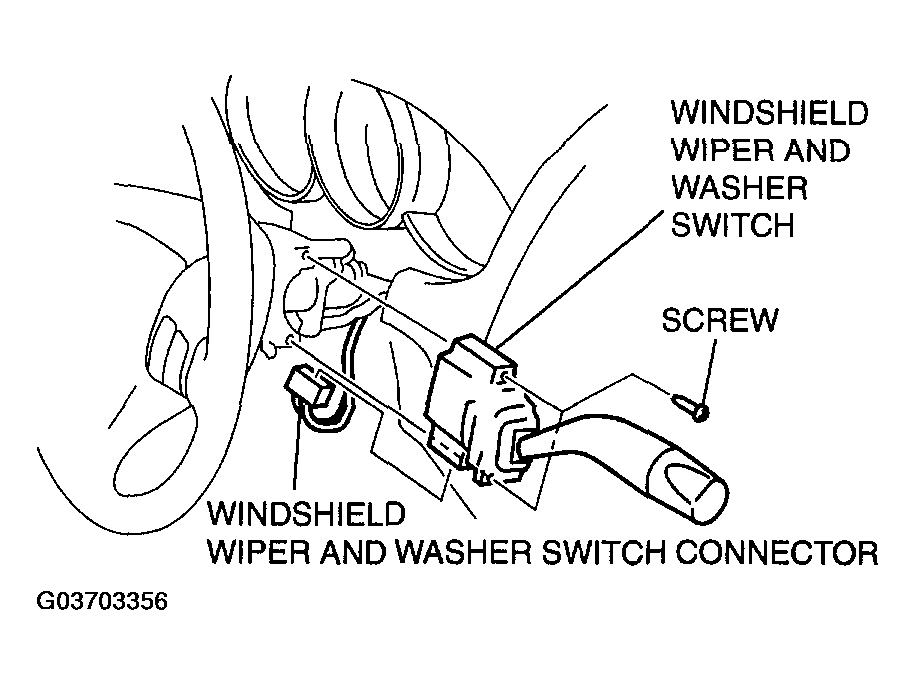

    Fig 1: Removing Screws, Windshield Wiper And Washer Switch
    G03703356Courtesy of MAZDA MOTORS CORP.
