Headlight Cleaner Actuator Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front side marker light. (See FRONT SIDE MARKER LIGHT REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  4. Remove the headlight cleaner nozzle. (See HEADLIGHT CLEANER NOZZLE REMOVAL .) (See HEADLIGHT CLEANER NOZZLE INSTALLATION .)
  5. Squeeze the clip tabs and slide the clip in the direction of the arrow.
  6. Disconnect headlight cleaner hose from the headlight cleaner actuator.
  7. Remove the screw, then remove the headlight cleaner actuator.
  8. Install in the reverse order of removal.

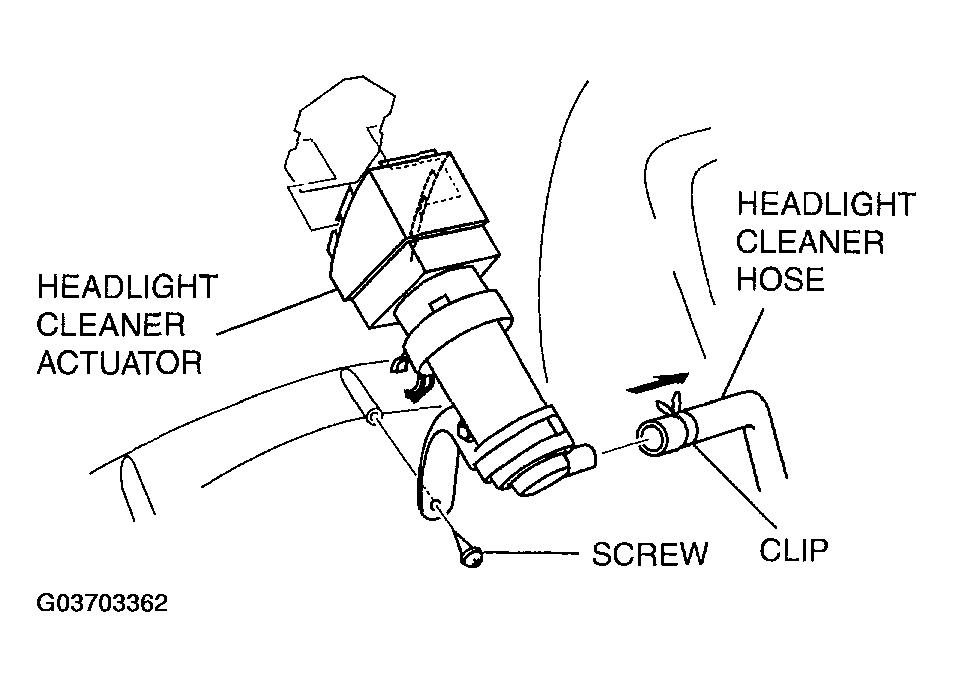

    Fig 1: Installing Screw, And Headlight Cleaner Actuator To Headlight Cleaner Hose
    G03703362Courtesy of MAZDA MOTORS CORP.
