Section 486 (Lighting System)
>>
Glove Compartment Light Bulb Removal/Installation
Glove Compartment Light Bulb Removal/Installation
WARNING:
This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
Disconnect the negative battery cable.
Remove the socket, then remove the glove compartment light bulb.
Install in the reverse order of removal.

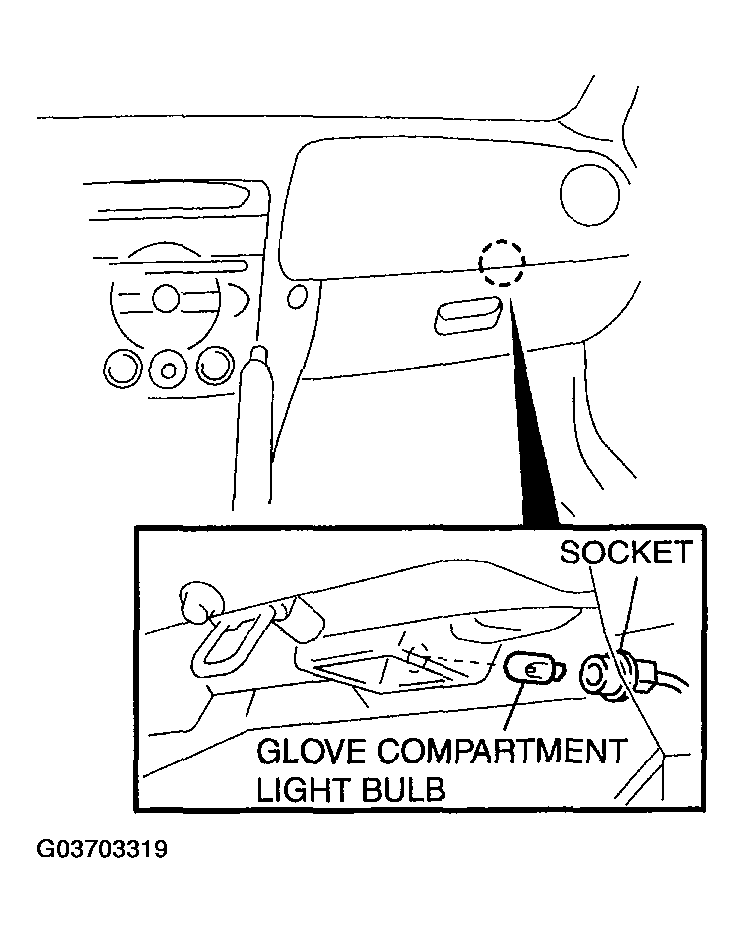

Fig 1: Removing Socket And Glove Compartment Light Bulb
Courtesy of MAZDA MOTORS CORP.
