Rear Door Lower Trim Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grip cover, then remove screws A.
  2. Using a small flathead screwdriver, open the cap and remove screw B.
  3. Remove the cover while rotating it to the front.
  4. Detach clips A, B, locator pins C, and tabs D from the rear door using a fastener remover.
  5. Remove the rear door lower trim.
  6. Install in the reverse order of removal.

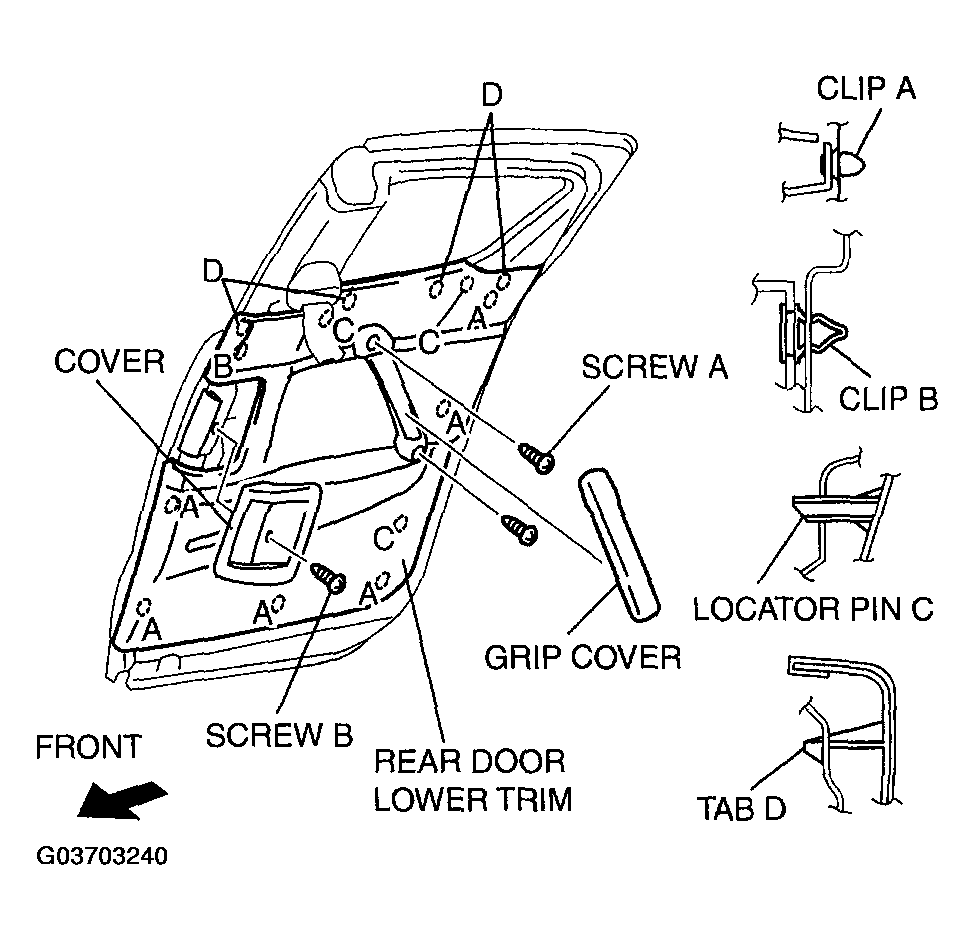

    Fig 1: Removing Rear Door Lower Trim
    G03703240Courtesy of MAZDA MOTORS CORP.
