A-Pillar Trim Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Partially peel back the seaming welt.
Detach clips A using a fastener remover.
Pull the A-pillar trim and detach clip B (1).
Pull the A-pillar trim upward and remove clip B from the A-pillar trim (2).

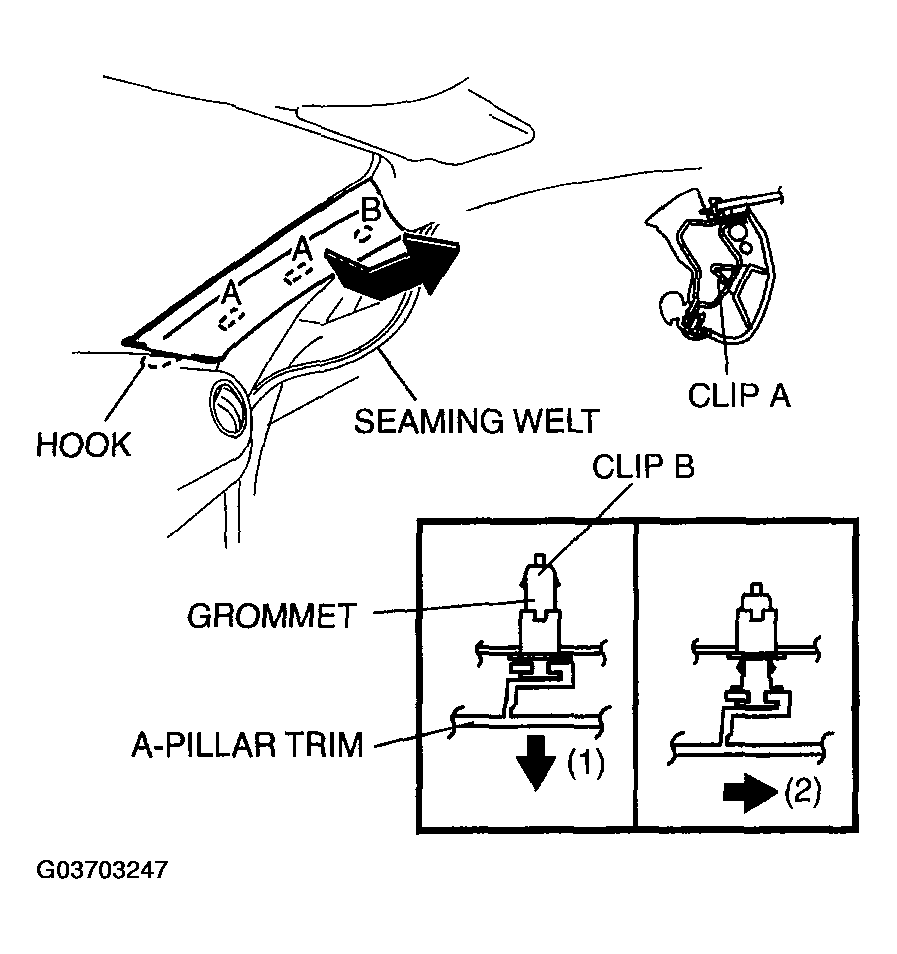

Fig 1: Removing Clip From A-Pillar Trim
Courtesy of MAZDA MOTORS CORP.
Pull clip B out and rotate it 45°.
Remove clip B from the grommet by pulling it upward.
Install in the reverse order of removal.

Fig 2: Removing Clip From Grommet
Courtesy of MAZDA MOTORS CORP.
