Front BELTLINE Molding Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  2. Remove the power outer mirror installation screws and move the mirror to access the front end of the front beltline molding. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
  3. While partially peeling back the front beltline molding, detach tabs A along the direction (1) shown in the figure.
  4. Remove clip B and front beltline molding.
  5. Install in the reverse order of removal.

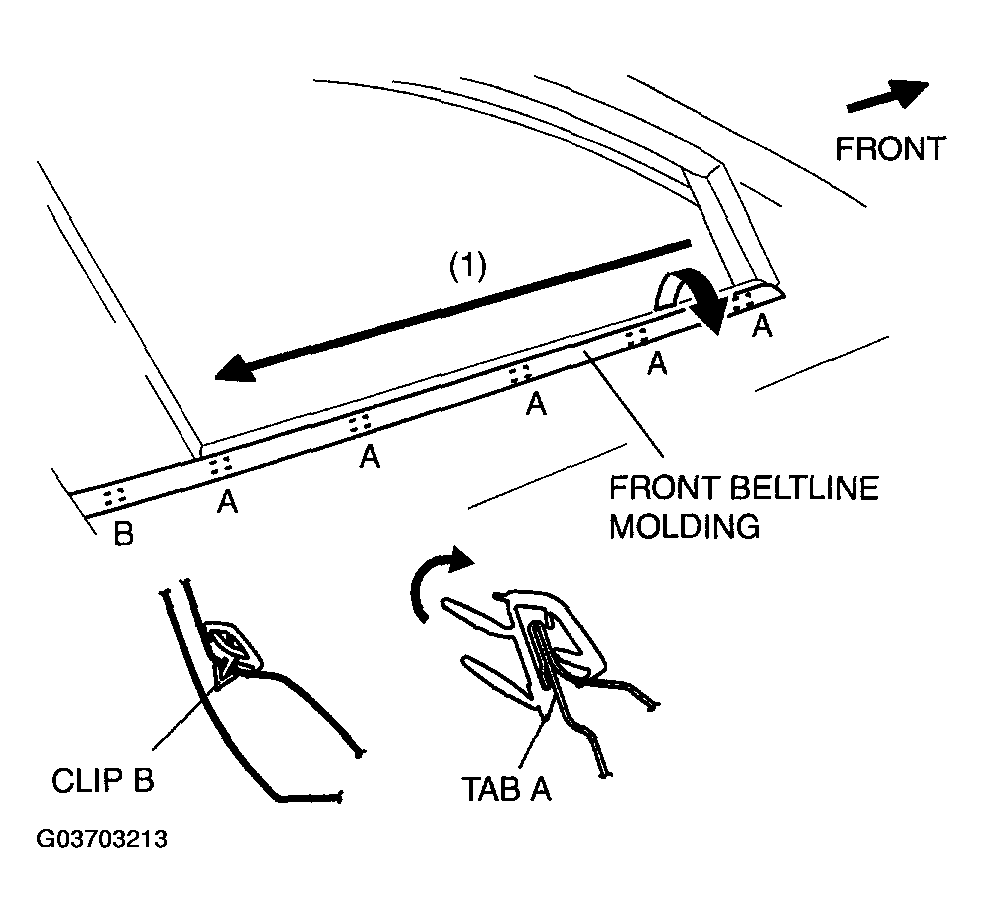

    Fig 1: Removing Front Beltline Molding
    G03703213Courtesy of MAZDA MOTORS CORP.
