Seat Warmer Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Verify that the continuity between the seat warmer switch terminals is as indicated in the table.
- If not as indicated in the table, replace the seat warmer switch.
Fig 1: Connector Terminal Continuity Reference Chart
Courtesy of MAZDA MOTORS CORP.

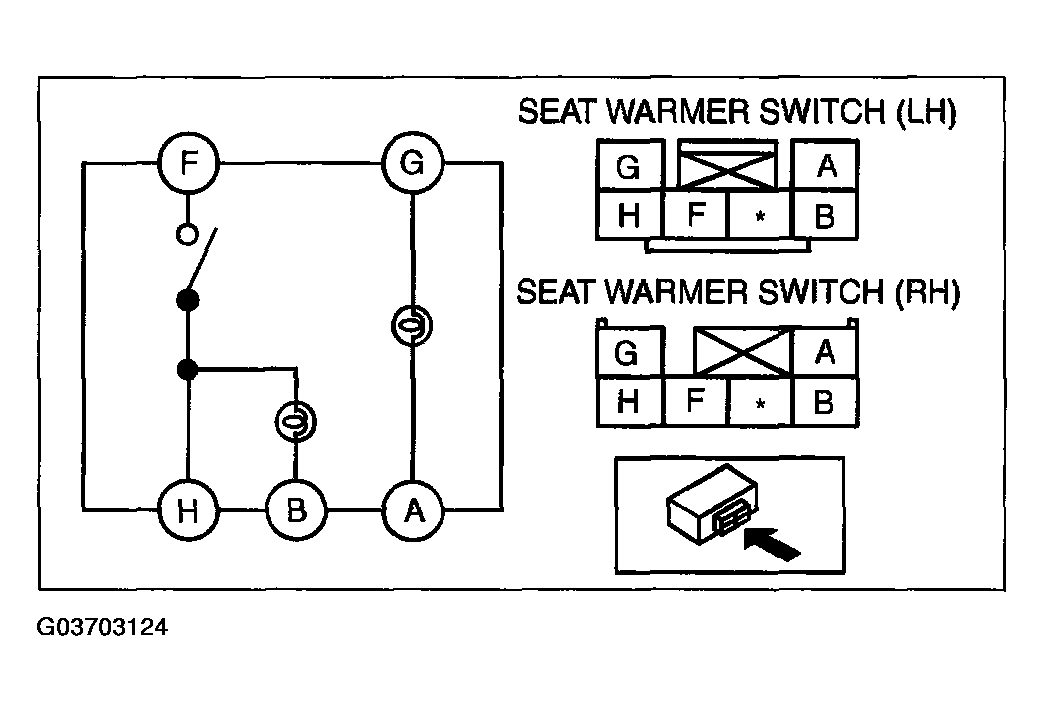

Fig 2: Measuring Continuity Between Seat Warmer Switch Terminals
Courtesy of MAZDA MOTORS CORP.
