Power Seat Switch

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the power seat switch connector.
  2. Verify that the continuity between the power seat switch terminals is as indicated in the table.
    • If not as indicated in the table, replace the power seat switch.

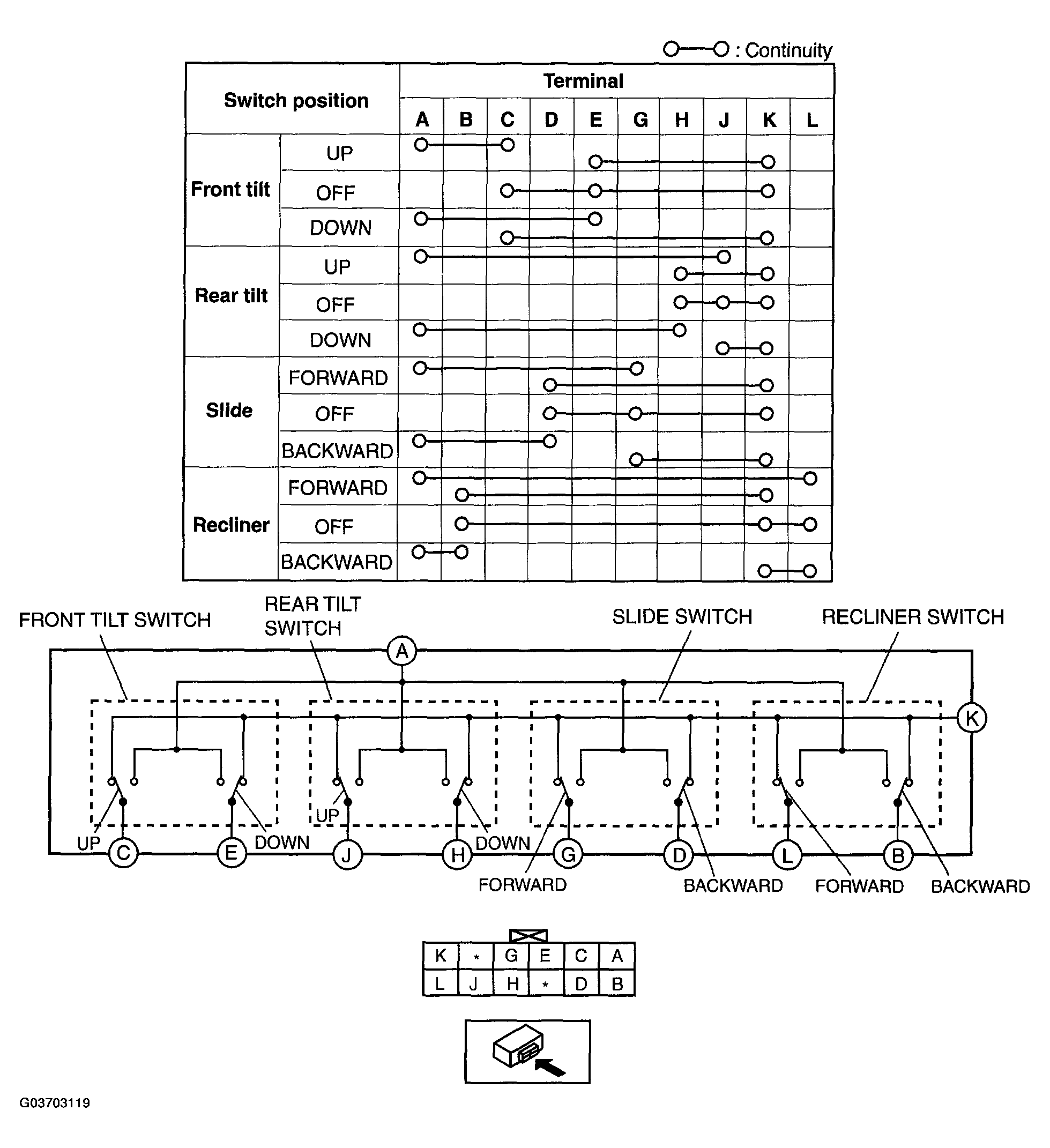

    Fig 1: Identifying Power Seat Switch Connector Terminal Continuity Chart
    G03703119Courtesy of MAZDA MOTORS CORP.
