Rear Bumper Reinforcement Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    2. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    3. Rear combination lights (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION .)
    4. Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION .)
  2. Remove the fasteners, then remove the energy-absorbing foam.
  3. Remove the nuts, then remove the rear bumper reinforcement.
  4. Install in the reverse order of removal.

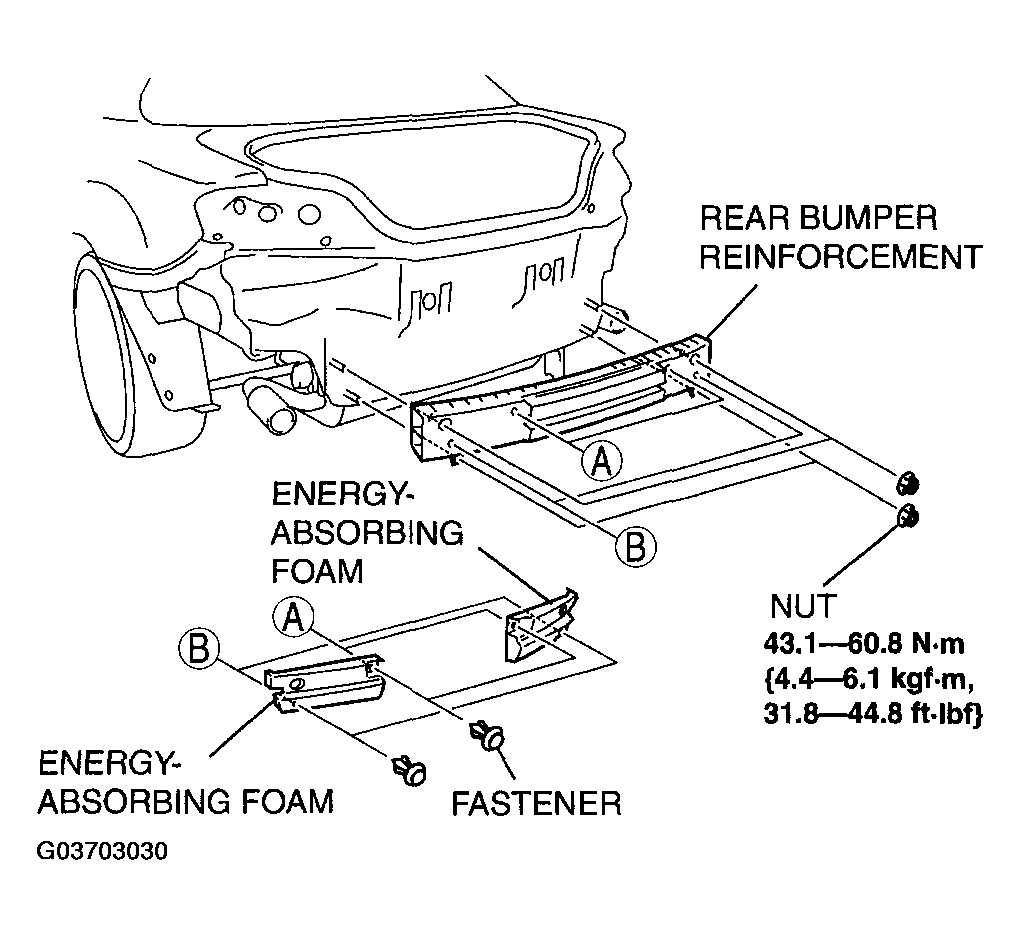

    Fig 1: Identifying Removal Order Of Rear Bumper Reinforcement
    G03703030Courtesy of MAZDA MOTORS CORP.
