Front Bumper Removal Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the front bumper ends (wheel arch) outward to detach from the bumper slider.
    CAUTION:
    • When detaching the front bumper from the bumper slider, the front bumper could fall and be damaged. Secure the front bumper so that it does not fall.
  2. Remove the front bumper from the body.

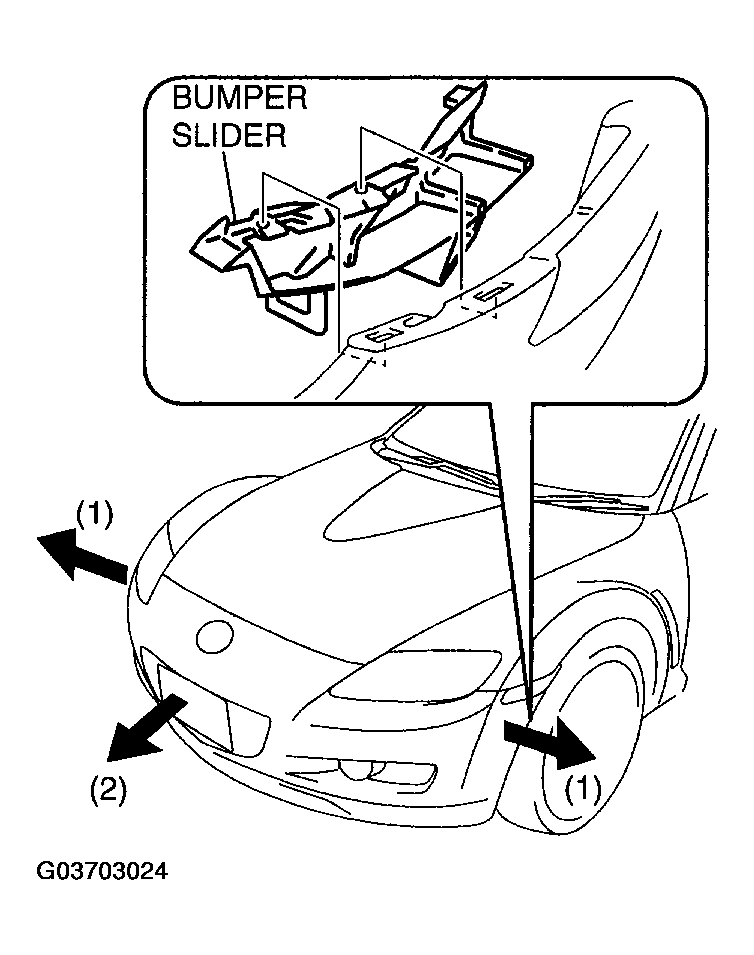

    Fig 1: Removing Front Bumper From Body
    G03703024Courtesy of MAZDA MOTORS CORP.
