System Wiring Diagram

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

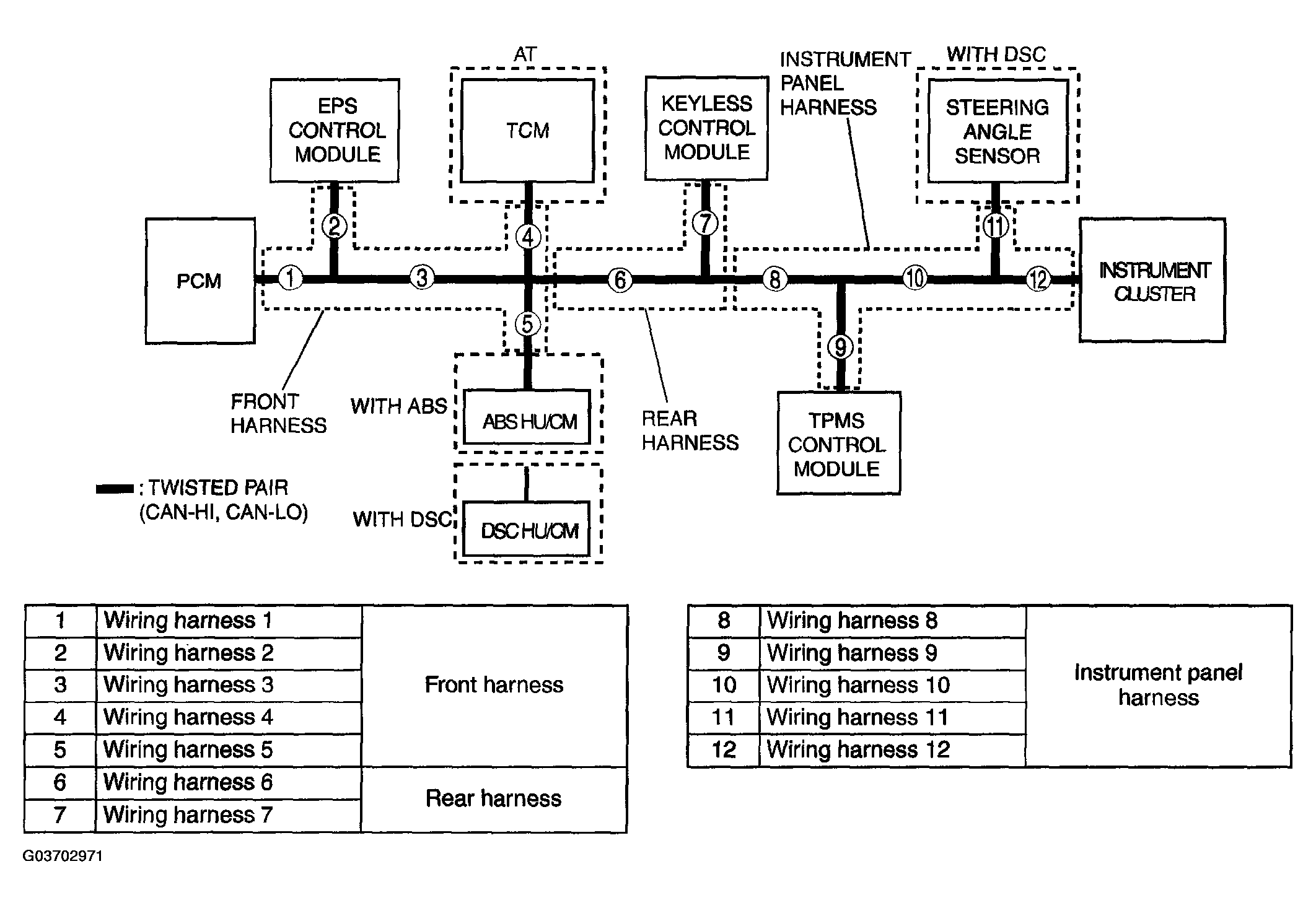

Fig 1: Wiring Diagram - Multiplex Communication System
G03702971Courtesy of MAZDA MOTORS CORP.
