DTC Table (Immobilizer System)
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

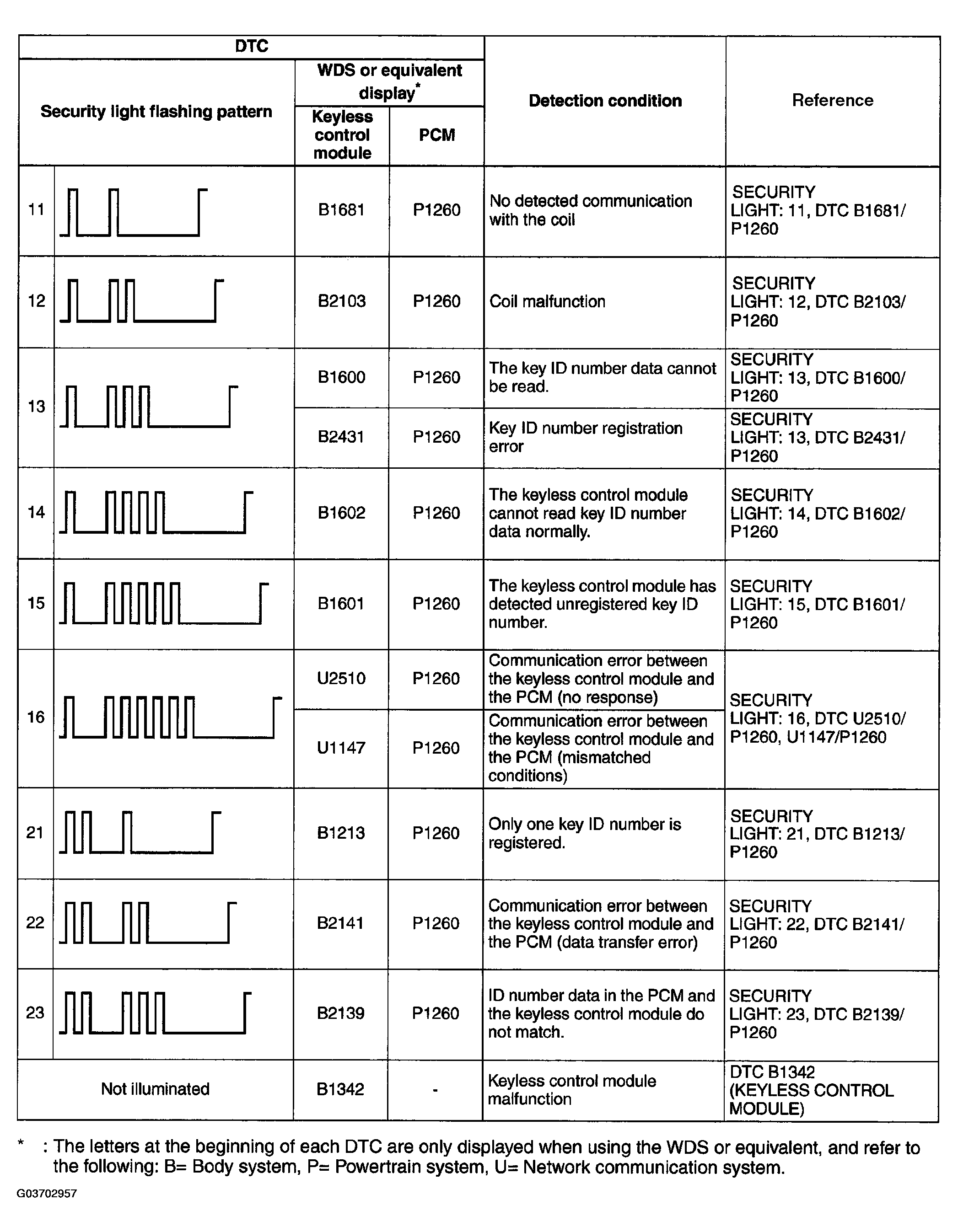

DTC INDEX
| DTC | Description |
|---|---|
| DTC B1681/P1260 | No Detected Communication With The Coil |
| DTC B2103/P1260 | Coil Malfunction |
| DTC B1600/P1260 | Key ID Number Data Cannot Be Read |
| DTC B2431/P1260 | Key ID Number Registration Error |
| DTC B1602/P1260 | Keyless Control Module Cannot Read Key ID Number Data Normally |
| DTC B1601/P1260 | Keyless Control Module Has Detected Unregistered Key ID Number |
| DTC U2510/P1260, U1147/P1260 | Communication Error Between Keyless Control Module And PCM (No Response); Communication Error Between Keyless Control Module And PCM (Mismatched Conditions) |
| DTC B1213/P1260 | Only One Key ID Number Is Registered |
| DTC B2141/P1260 | Communication Error Between Keyless Control Module And PCM (Data Transfer Error) |
| DTC B2139/P1260 | ID Number Data In PCM And Keyless Control Module Do Not Match |
| DTC B1342 | Keyless Control Module Malfunction |
