DTC Table
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
DTC INDEX
| DTC | Description |
|---|---|

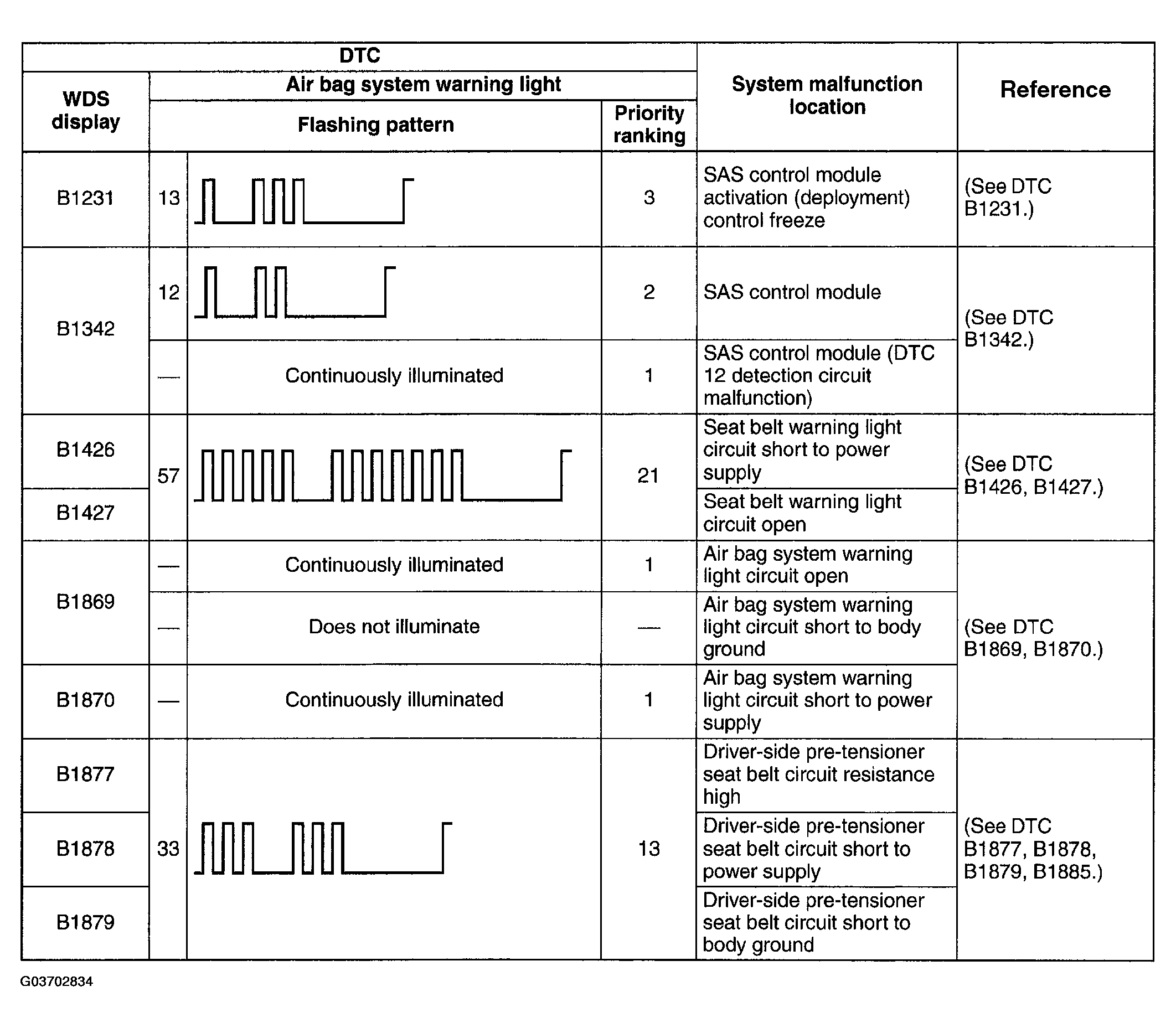

| DTC B1231 | SAS control module activation (deployment) control freeze |
| DTC B1342 | SAS control module DTC 12 detection circuit malfunction |
| DTC B1426, B1427 | Malfunction in the seat belt warning light circuit |
| DTC B1869, B1870 | Malfunction in the air bag system warning light circuit |
| DTC B1877, B1878, B1879, B1885 | Driver-side pre-tensioner seat belt circuit malfunction |

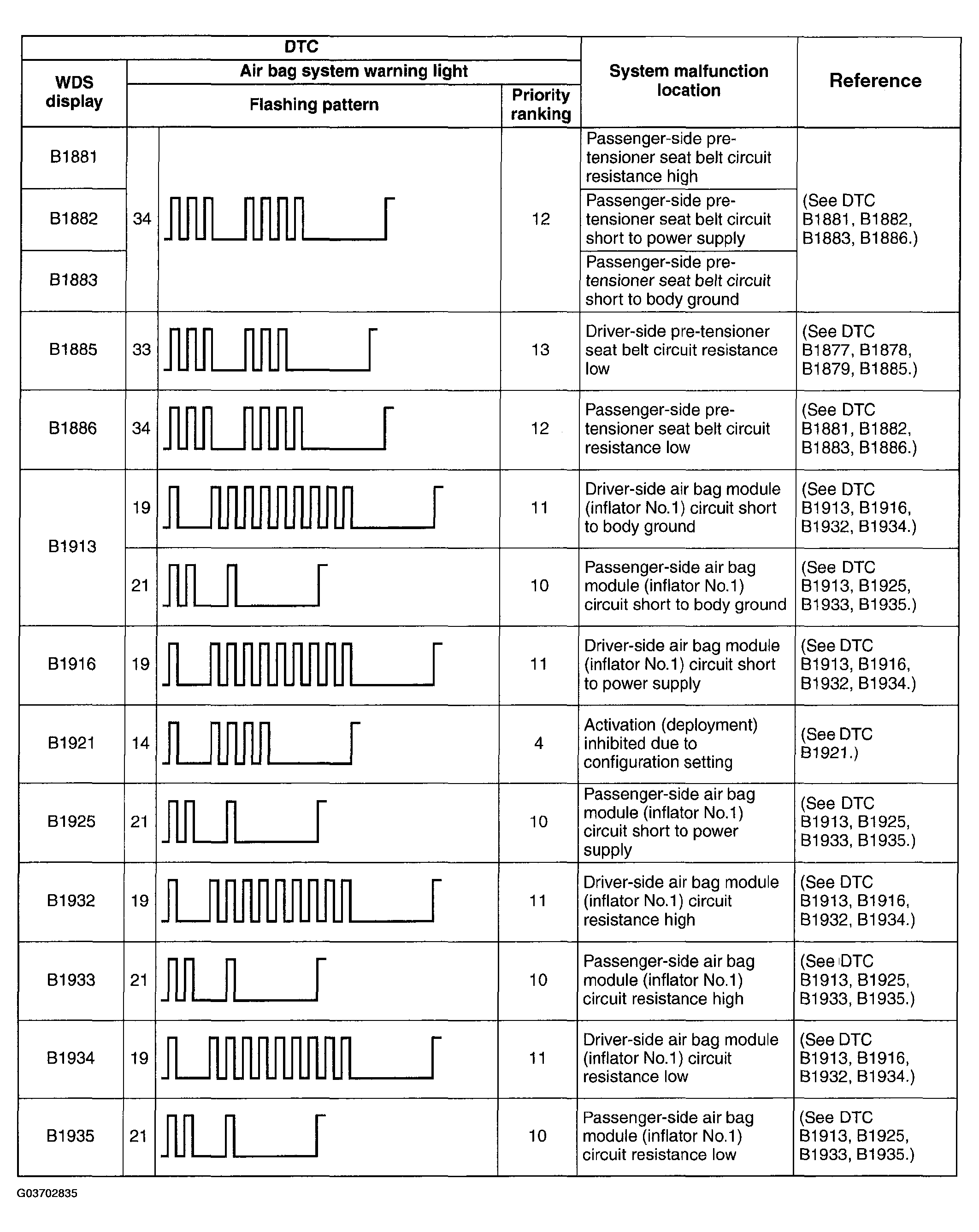

| DTC B1881, B1882, B1883, B1886 | Passenger-side pre-tensioner seat belt circuit malfunction |
| DTC B1913, B1916, B1932, B1934 | Driver-side air bag module (inflator no. 1) circuit malfunction |
| DTC B1913, B1925, B1933, B1935 | Passenger-side air bag module (inflator no. 1) circuit malfunction |
| DTC B1921 | Activation (deployment) inhibited due to configuration setting |

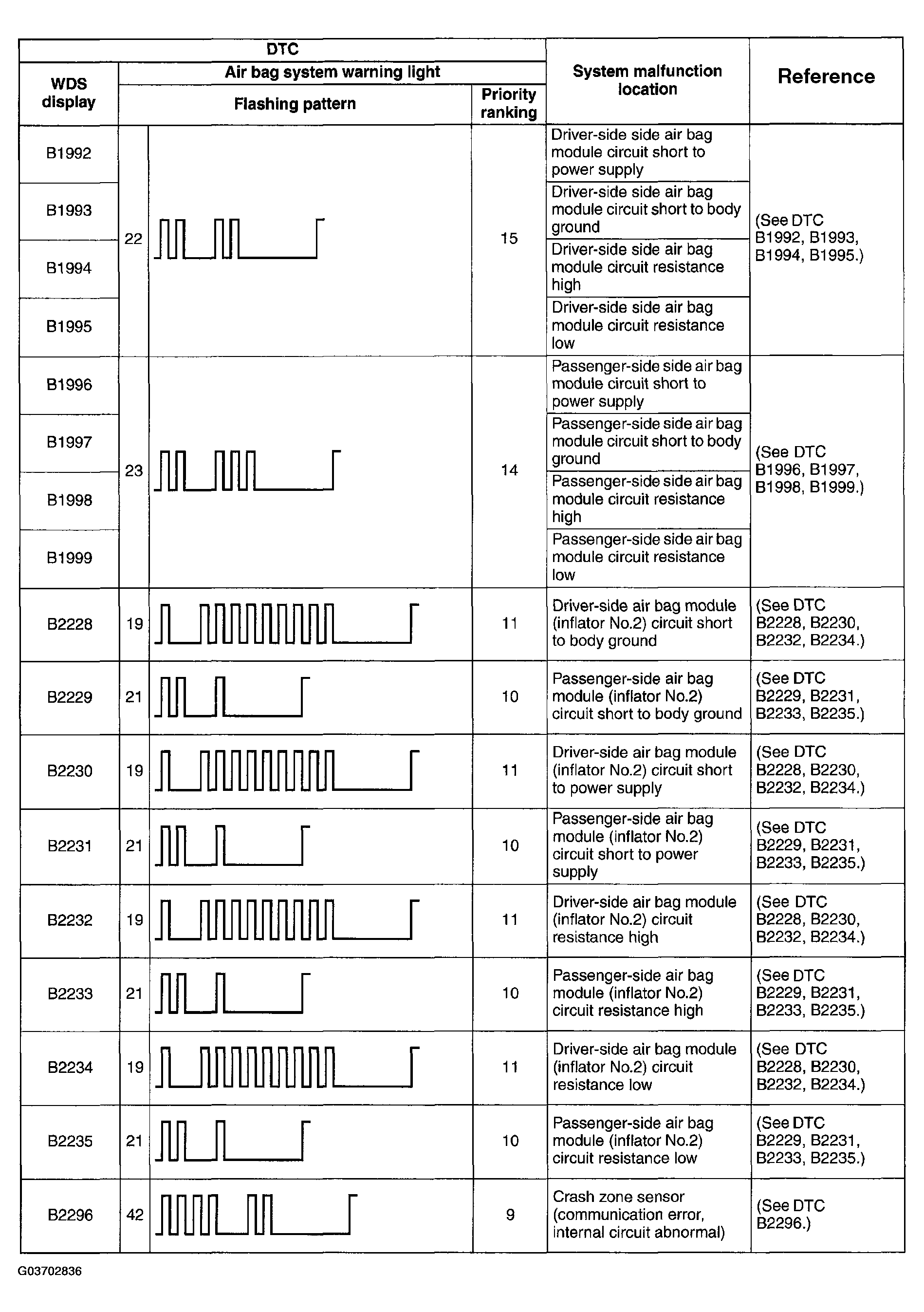

| DTC B1992, B1993, B1994, B1995 | Driver-side side air bag module circuit malfunction |
| DTC B1996, B1997, B1998, B1999 | Pasenger-side side air bag module circuit malfunction |
| DTC B2228, B2230, B2232, B2234 | Driver-side air bag module (inflator no. 2) circuit malfunction |
| DTC B2229, B2231, B2233, B2235 | Passenger-side air bag module (inflator no. 2) circuit malfunction |
| DTC B2296 | Crash zone sensor (communication error, internal circuit abnormal) |

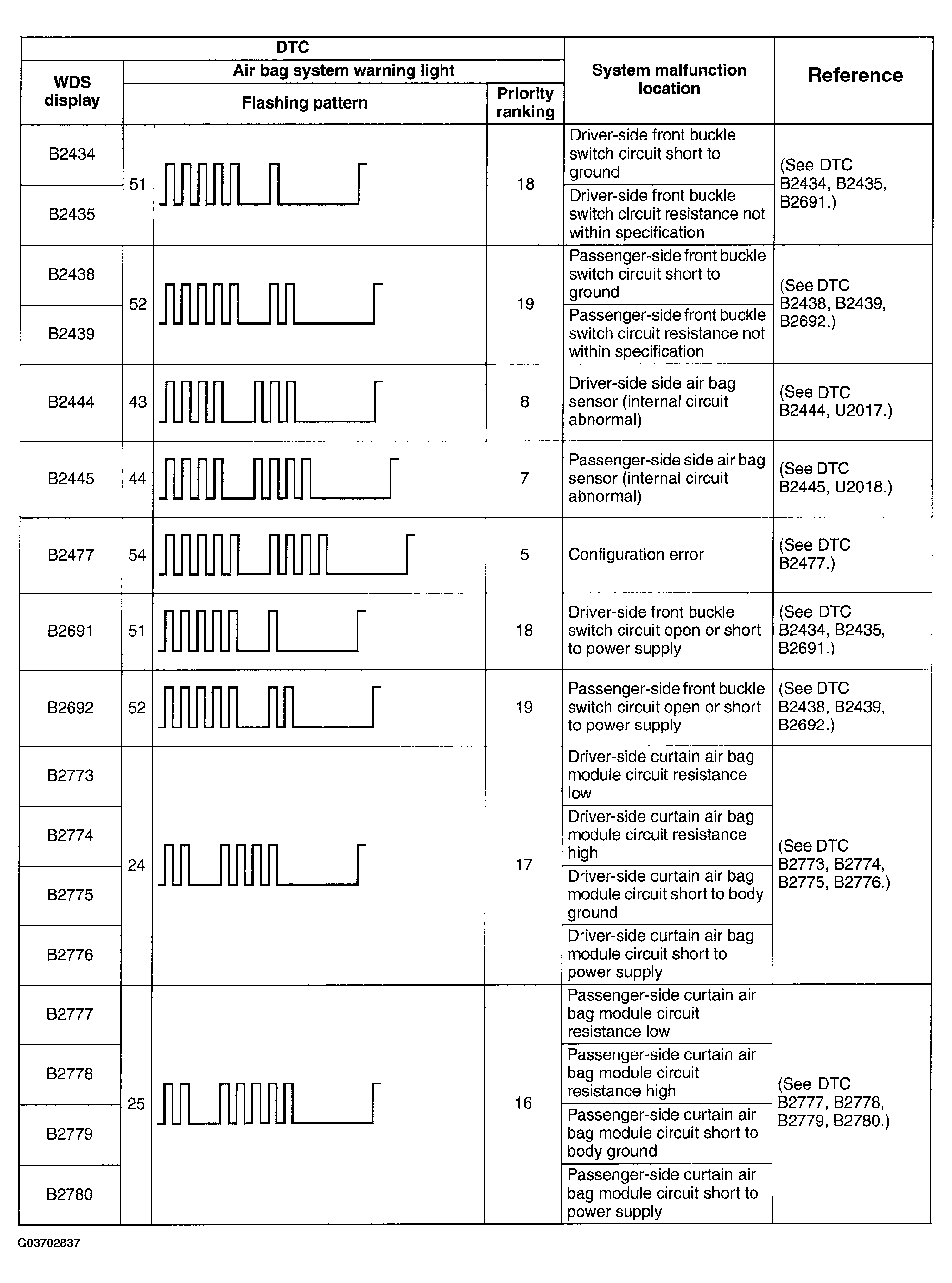

| DTC B2434, B2435, B2691 | Driver-side front buckle switch circuit malfunction |
| DTC B2438, B2439, B2692 | Passenger-side front buckle switch circuit malfunction |
| DTC B2444, U2017 | Driver-side side air bag malfunction |
| DTC B2445, U2018 | Passenger-side side air bag malfunction |
| DTC B2477 | Configuration error |
| DTC B2773, B2774, B2775, B2776 | Driver-side curtain air bag module circuit malfunction |
| DTC B2777, B2778, B2779, B2780 | Passenger-side curtain air bag module circuit malfunction |
| DTC B2867 | Poor connection of any SAS control module connectors |

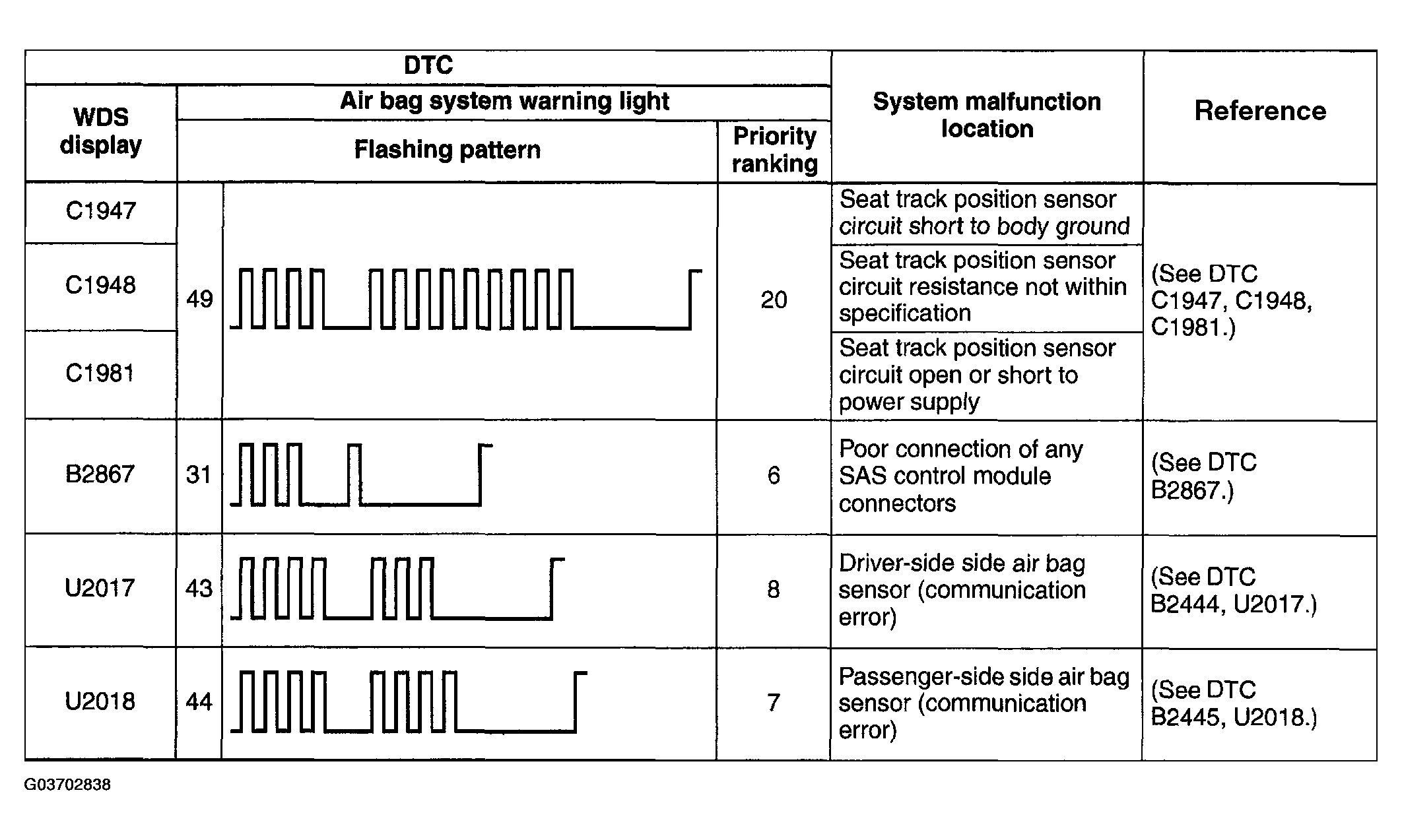

| DTC C1947, C1948, C1981 | Seat track position sensor circuit malfunction |
- DTCs are common for present and past malfunction diagnosis.NOTE:
- When DTCs not shown in the DTC table are displayed, replace the SAS control module.
- If the air bag system warning light does not illuminate or remains illuminated when the ignition switch is turned to the ON position, inspect and repair the air bag system warning light circuit, and then confirm that the air bag system warning light is operational.
- The air bag system warning light flashes the DTC pattern for five cycles, and then remains illuminated until the ignition switch is turned to the LOCK position.
- If the SAS control module configuration is performed while the SRS air bag system circuit has a malfunction, the air bag system warning light flashes. Verify that the warning light goes out approx. 15 s after the system circuit malfunction is solved.
