Section 473 (On-Board Diagnostic (Air Bag System))
>>
Air Bag System Wiring Diagram
Air Bag System Wiring Diagram
WARNING:
This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

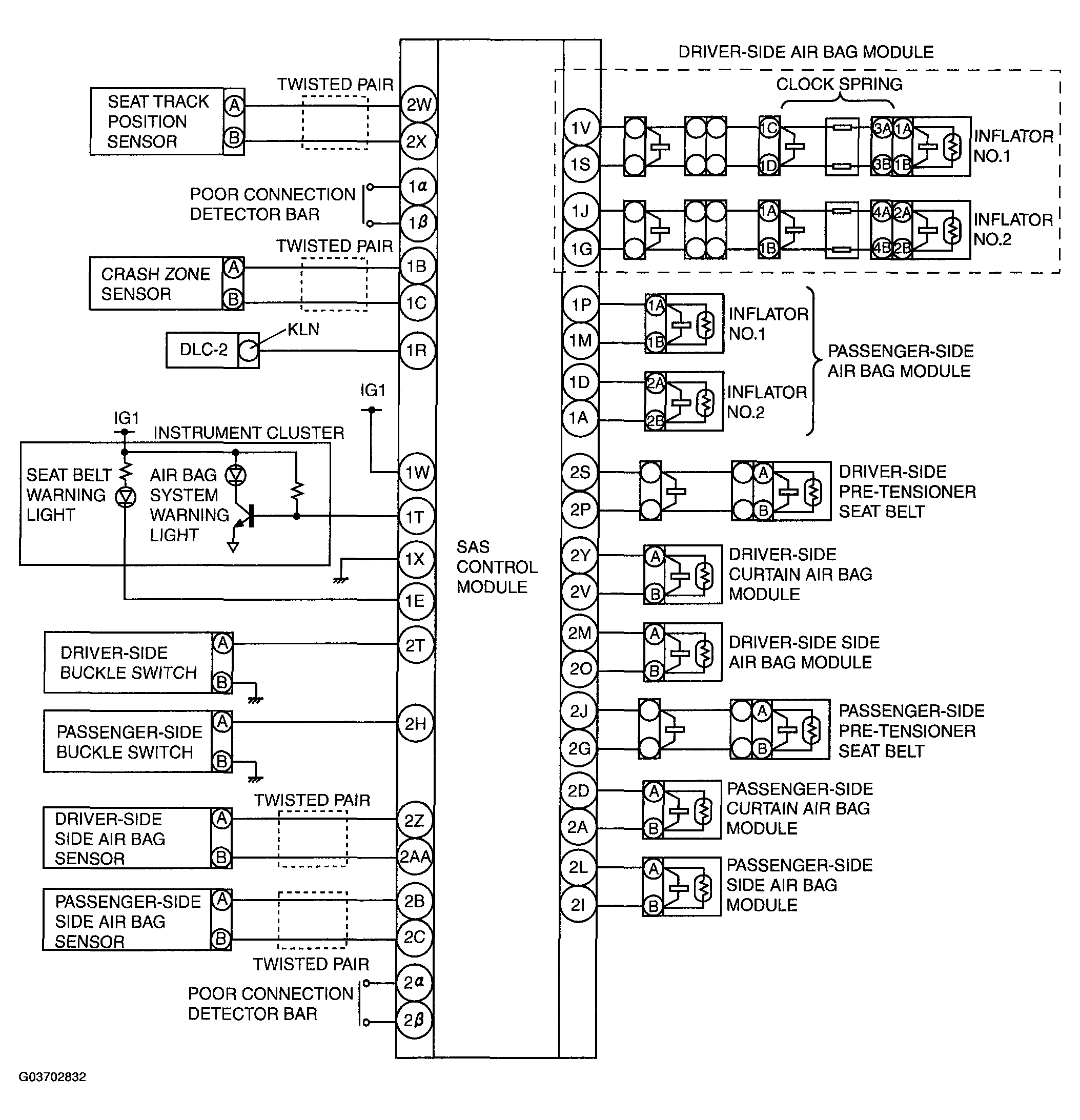

Fig 1: Wiring Diagram - Air Bag System
Courtesy of MAZDA MOTORS CORP.
