Air Intake Actuator Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect battery positive voltage to air intake actuator terminal A (or C), and ground to terminal C (or A), and then verify that the air intake actuator operates as shown in the table.
    • If the operation condition is not normal, replace the air intake actuator.

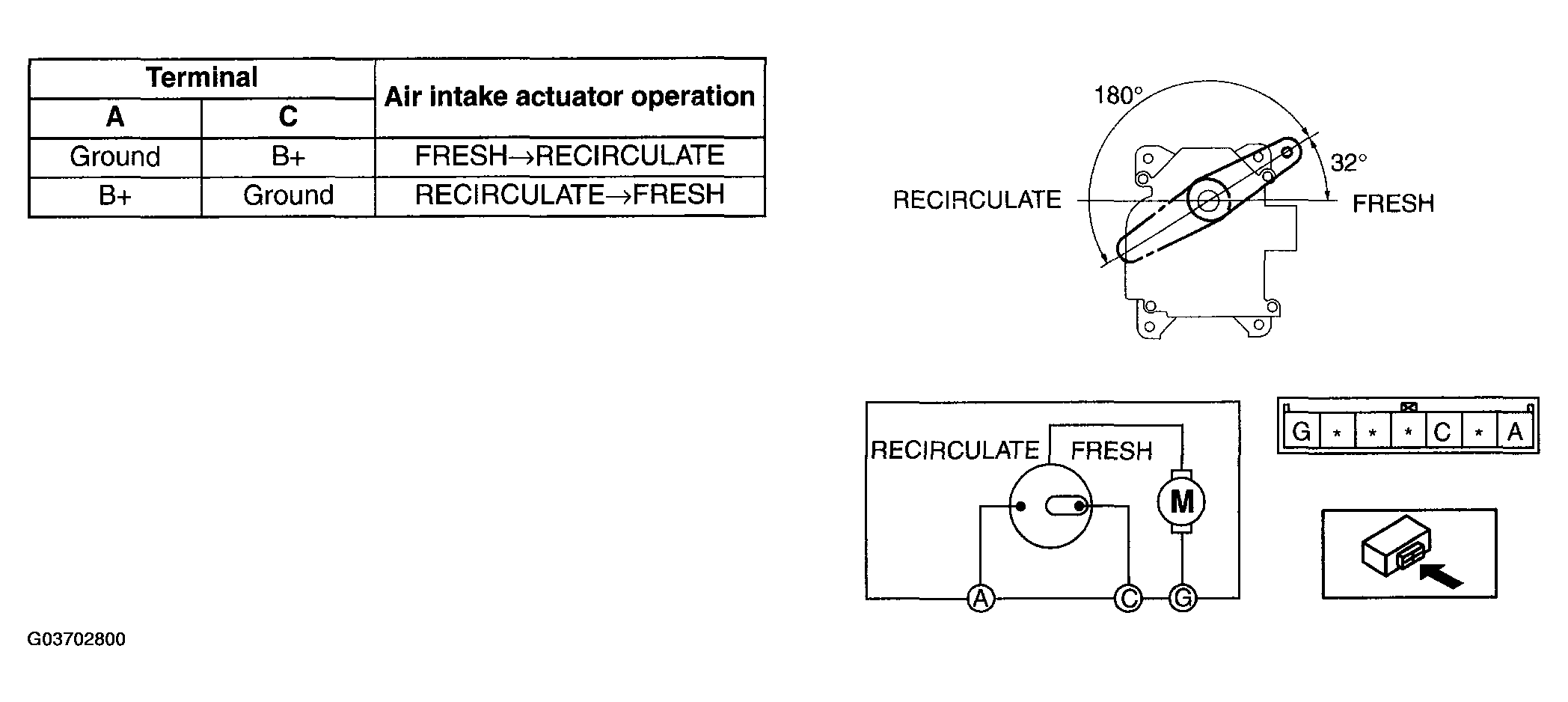

    Fig 1: Identifying Air Intake Actuator Operation
    G03702800Courtesy of MAZDA MOTORS CORP.
