Selector Lever Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch to the ON position (engine OFF).
With the brake pedal depressed, verify that there is a "click" at each range when shifted.
Verify that the selector lever can be shifted.
Verify that there is a "click" at each position when shifted from the P position to the M range.

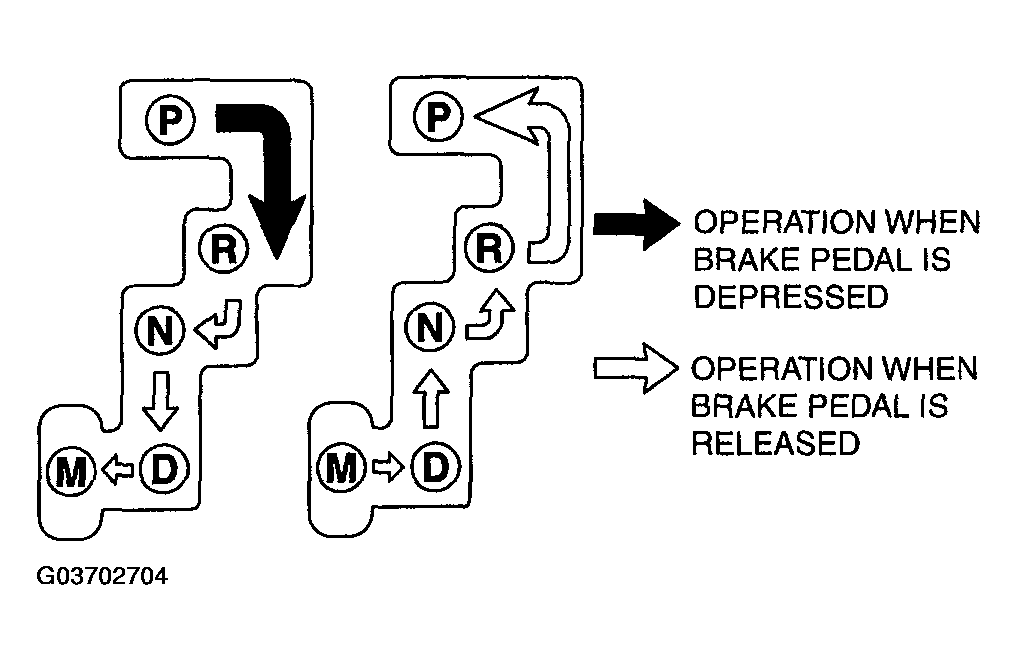

Fig 1: Verifying "Click" At Each Position Shifted From P Position To M Range
Courtesy of MAZDA MOTORS CORP.
Verify that the positions of the selector lever and the indicator are aligned.
- If there is any malfunction, adjust the TR switch. (See TRANSMISSION RANGE (TR) SWITCH ADJUSTMENT .)
Verify that the vehicle operates in each selected range.

Fig 2: Verifying Vehicle Operates In Each Selected Range
Courtesy of MAZDA MOTORS CORP.
