Interlock Cable Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch to ON position, (engine OFF)
Remove the clip of the selector lever base plate, then remove the interlock cable from the U-groove.

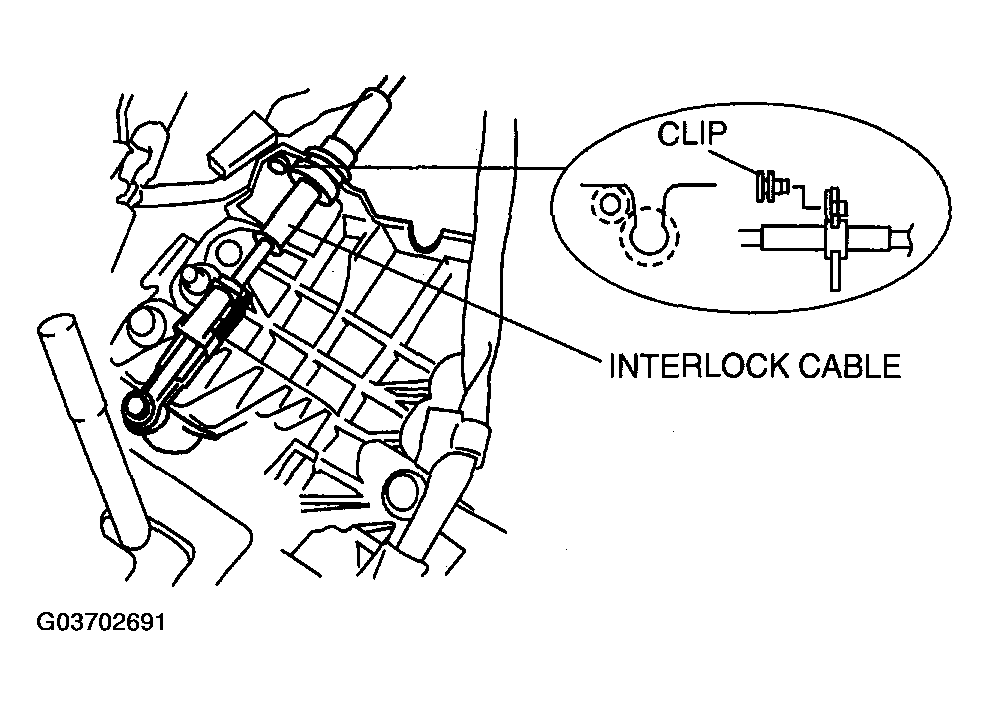

Fig 1: Removing Interlock Cable From U-Groove
Courtesy of MAZDA MOTORS CORP.
Remove the interlock cable from the selector lever.

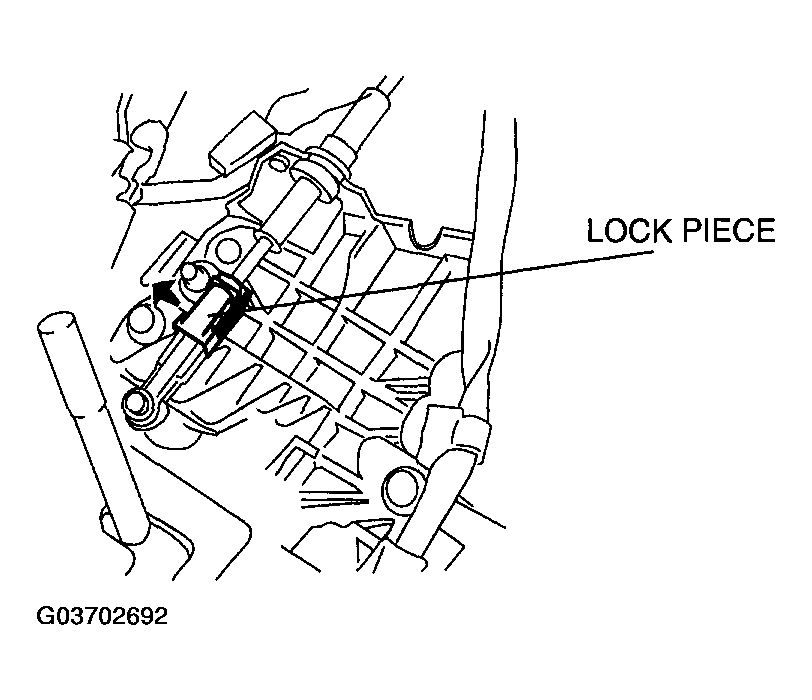

Fig 2: Removing Interlock Cable From Selector Lever
Courtesy of MAZDA MOTORS CORP.
Verify that the interlock cable moves freely with the brake pedal depressed.
- If there is any malfunction, replace the interlock cable.
Fig 3: Identifying Interlock Cable Moves Freely
Courtesy of MAZDA MOTORS CORP.
