Turbine sensor
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

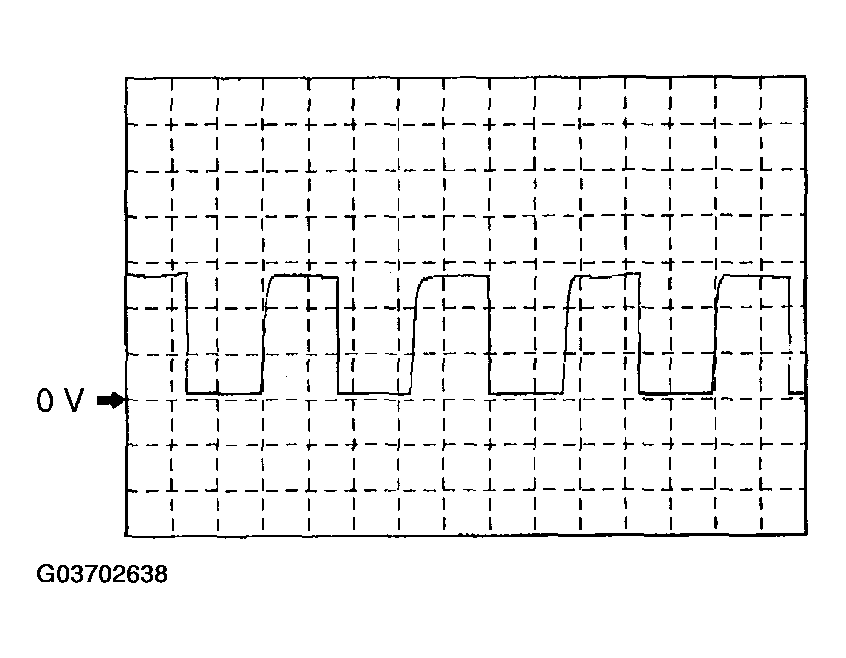

- TCM terminal: 2G (+)-2M (-)
- Oscilloscope setting: 5 V/DIV (Y) 250 microseconds/DIV (X)
- Measuring condition: Vehicle speed at 20 km/h {12 mph} (M range 1GR)
Courtesy of MAZDA MOTORS CORP.
