D range (normal mode)

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

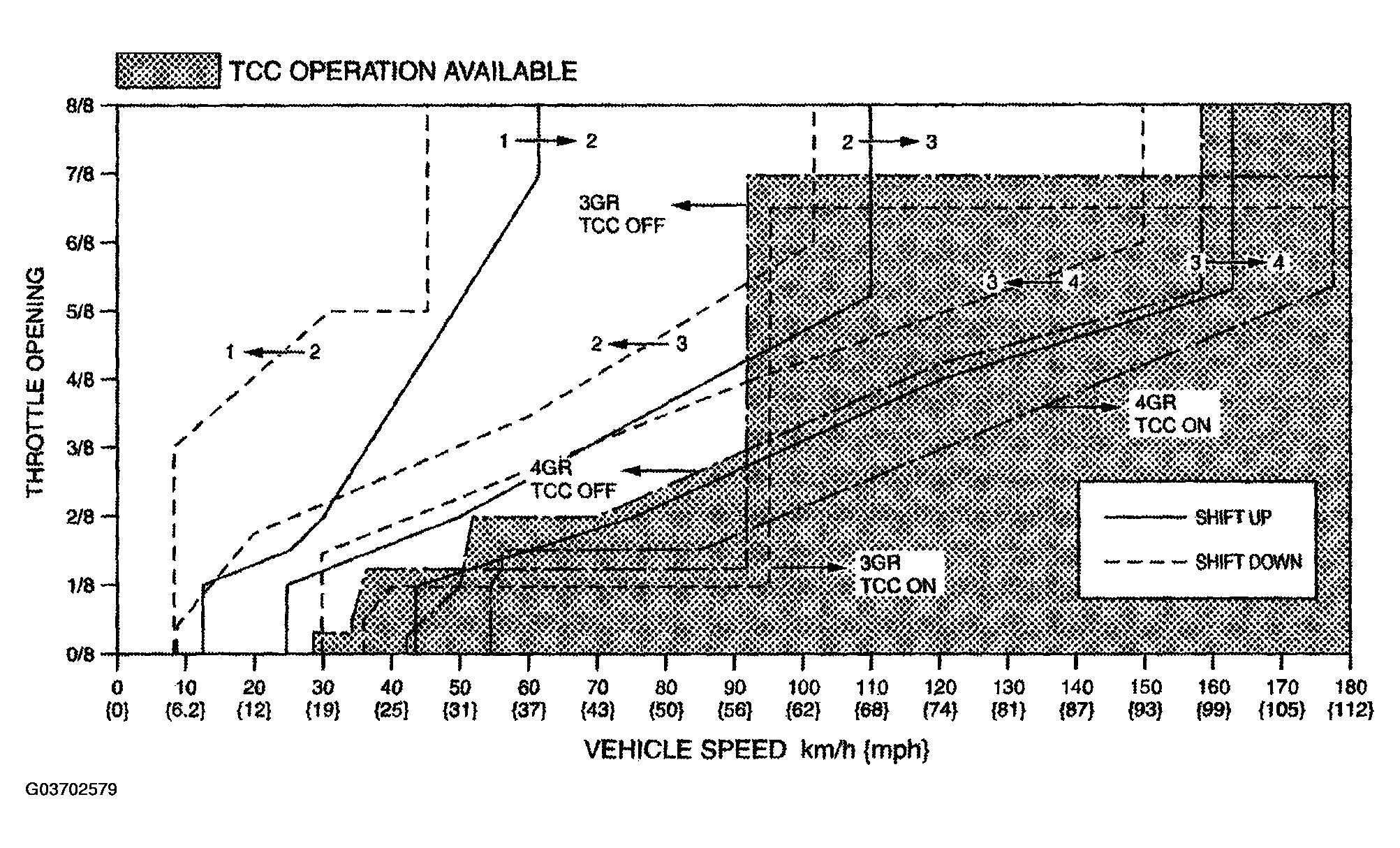

Fig 1: Identifying Shift Diagram (D Range (Normal Mode))
G03702579Courtesy of MAZDA MOTORS CORP.
