Drive Plate Installation Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Set the SST against the engine.
Tighten the drive plate mounting bolts in two or three steps in the order as shown in the figure.
Tightening torque
1. 41.2-56.8 N.m
  1. {4.2-5.7 kgf.m, 30.4-41.8 ft.lbf}
Install the transmission. (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION .)

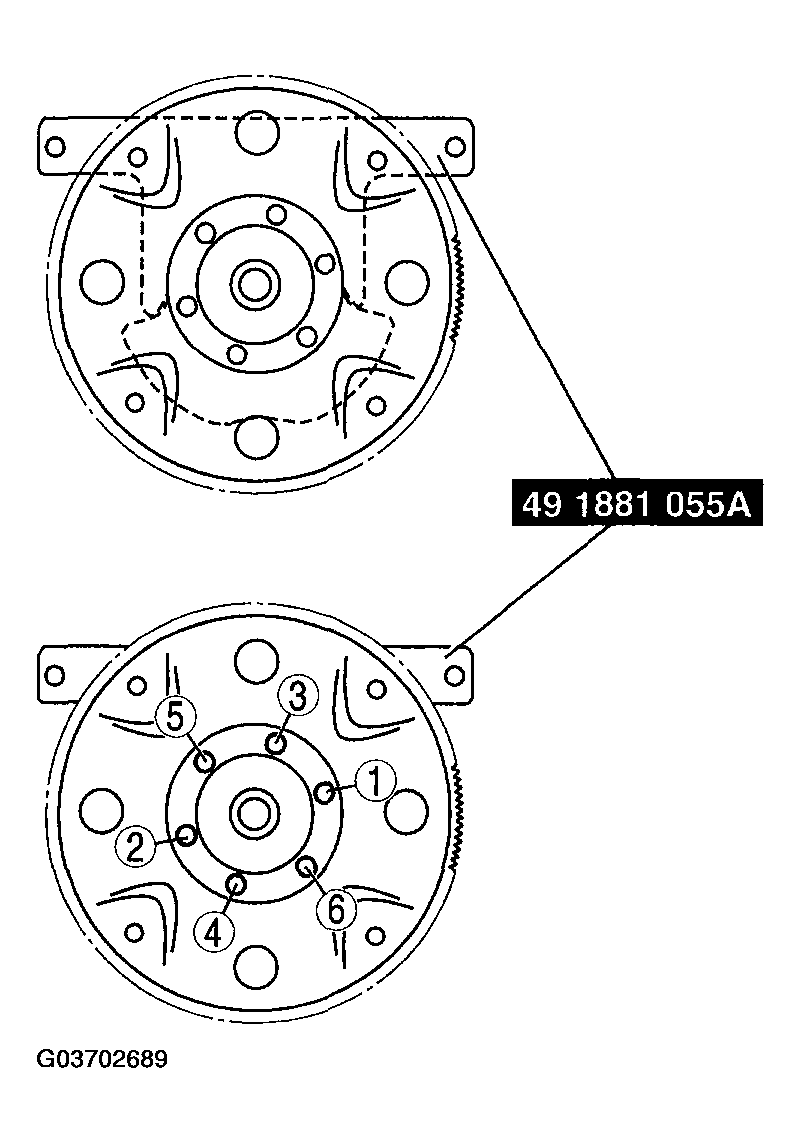

Fig 1: Identifying Drive Plate & Bolts
Courtesy of MAZDA MOTORS CORP.
