Torque Converter Installation Nuts Installation Note
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Align the holes by turning the torque converter.

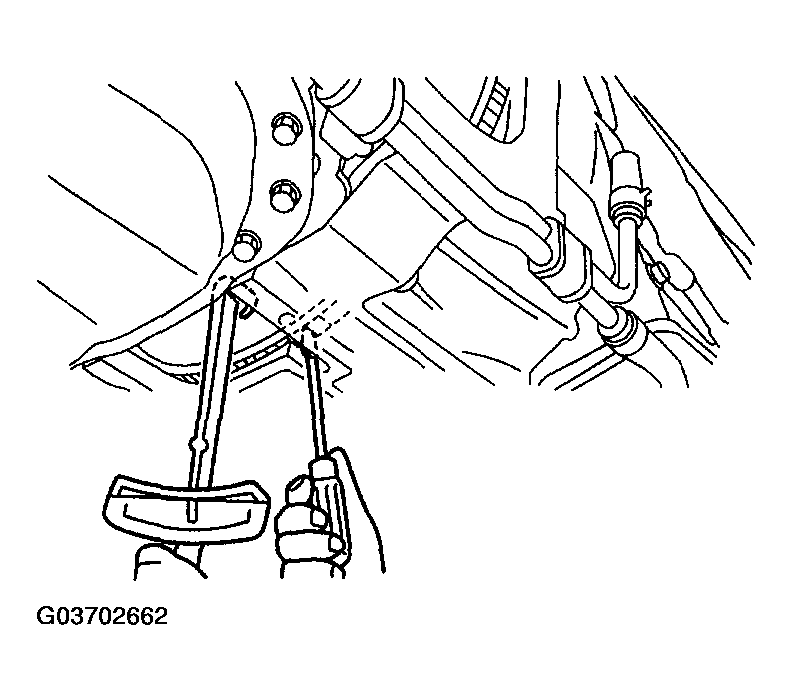

- Lock the drive plate using a flathead screwdriver.CAUTION:
- Loosely and equally tighten the torque converter nuts, then further tighten them to the specified tightening torque.
- Tighten the torque converter installation nuts.
Tightening torque
- 34-49 N.m {3.5-4.9 kgf.m, 26-36 ft.lbf}
- Tighten the driven plate installation bolts.
Tightening torque
- 34-49 N.m {3.5-4.9 kgf.m, 26-36 ft.lbf}
