Propeller Shaft Removal Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Install the SST to the output shaft.

Fig 1: Installing SST To Output Shaft
Courtesy of MAZDA MOTORS CORP.
Insert a slab of wood behind the differential and remove the propeller shaft.

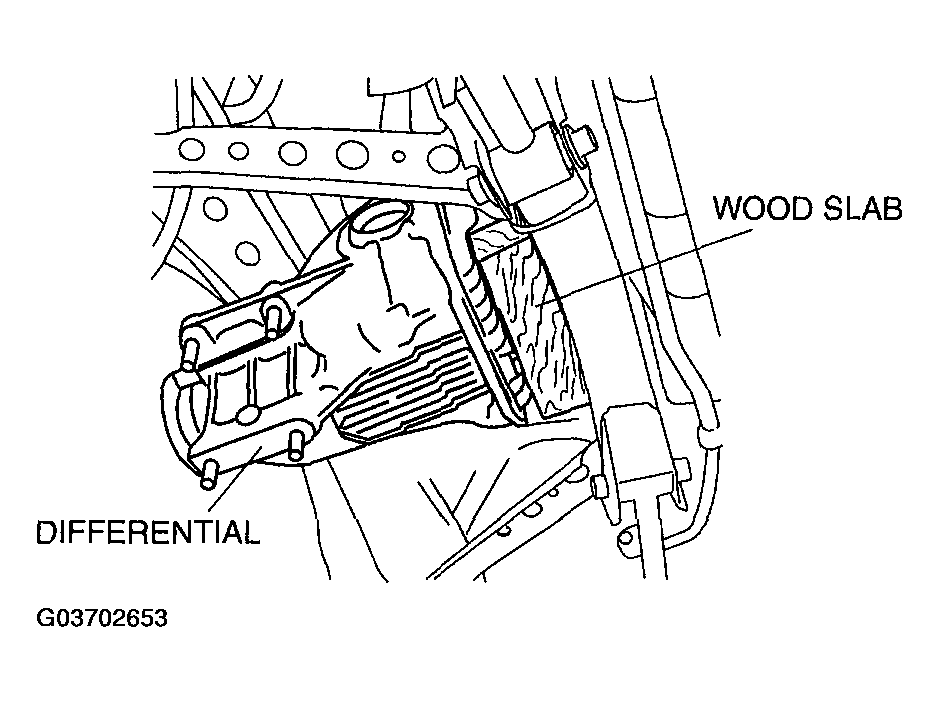

Fig 2: Inserting A Slab Of Wood Behind Differential
Courtesy of MAZDA MOTORS CORP.
