Propeller Shaft Removal Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Install the SST to the main shaft.

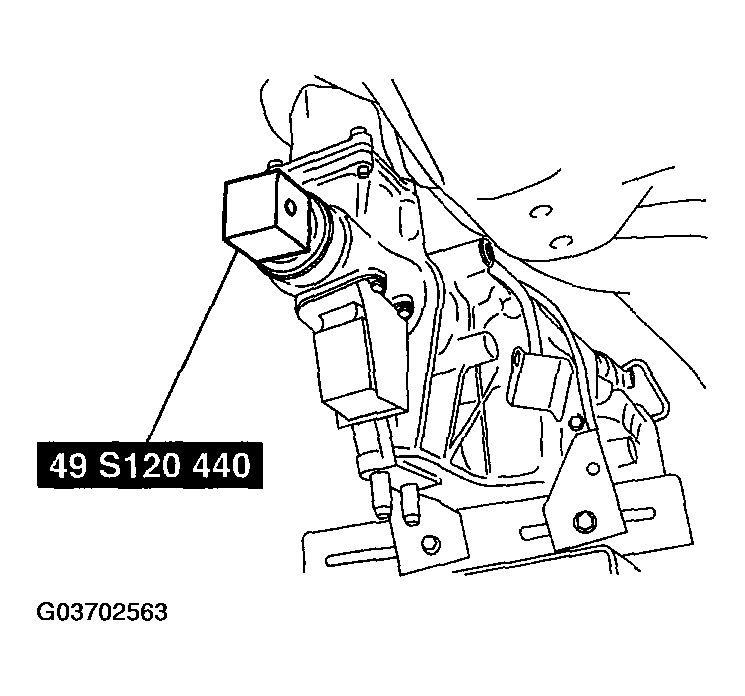

Fig 1: Installing SST To Main Shaft
Courtesy of MAZDA MOTORS CORP.
Insert a slab of wood behind the rear differential, and remove the propeller shaft.

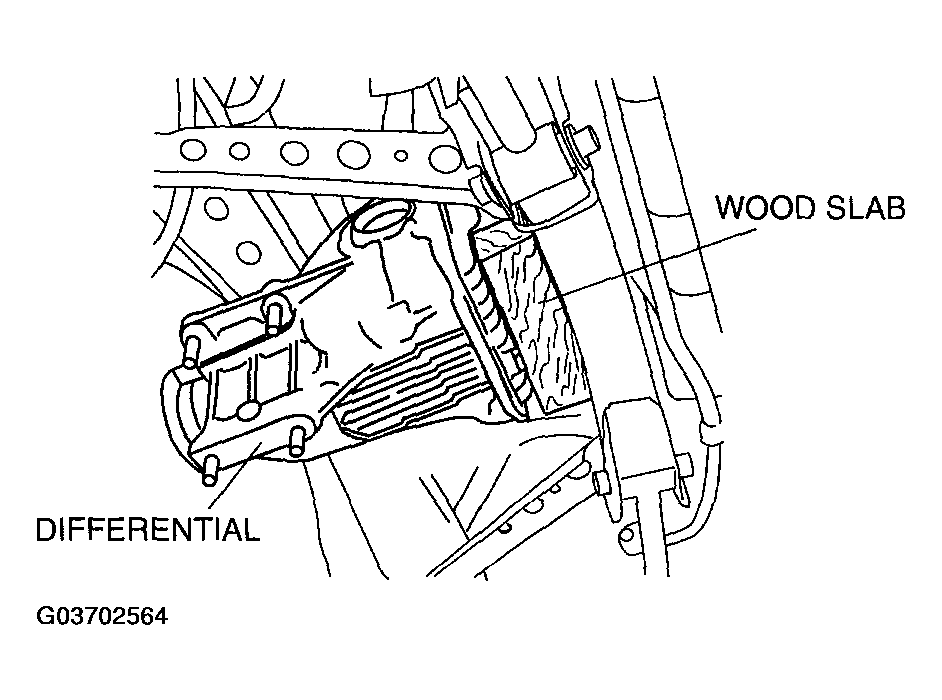

Fig 2: Identifying Slab Of Wood Behind Rear Differential
Courtesy of MAZDA MOTORS CORP.
