Pilot Bearing Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Inspect the pilot bearing when it is installed to the eccentric shaft.

Remove the clutch unit so that the pilot bearing can be inspected.
Inspect the pilot bearing for damage, wear, and proper rotation.

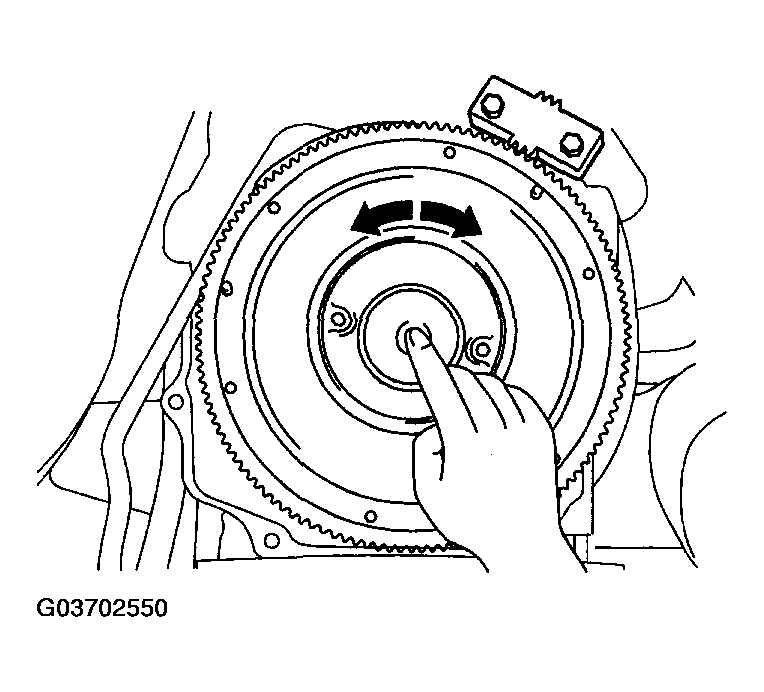

Fig 1: Inspecting Pilot Bearing
Courtesy of MAZDA MOTORS CORP.
- If there is any malfunction, replace the pilot bearing.
Install the clutch unit.
