Flywheel Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the flywheel.
NOTE:
- Correct slight scratches and discoloration using sandpaper.
- Inspect the runout of the surface that contacts the clutch disc with the flywheel installed to the eccentric shaft.
Fig 1: Correcting Slight Scratches And Discoloration Using Sandpaper
Courtesy of MAZDA MOTORS CORP.
Inspect the surface that contacts the clutch disc for scratches, nicks, and discoloration.
Inspect the ring gear teeth for damage and wear.
Install the flywheel.
Measure the runout of the surface that contacts the clutch disc using a dial gauge.

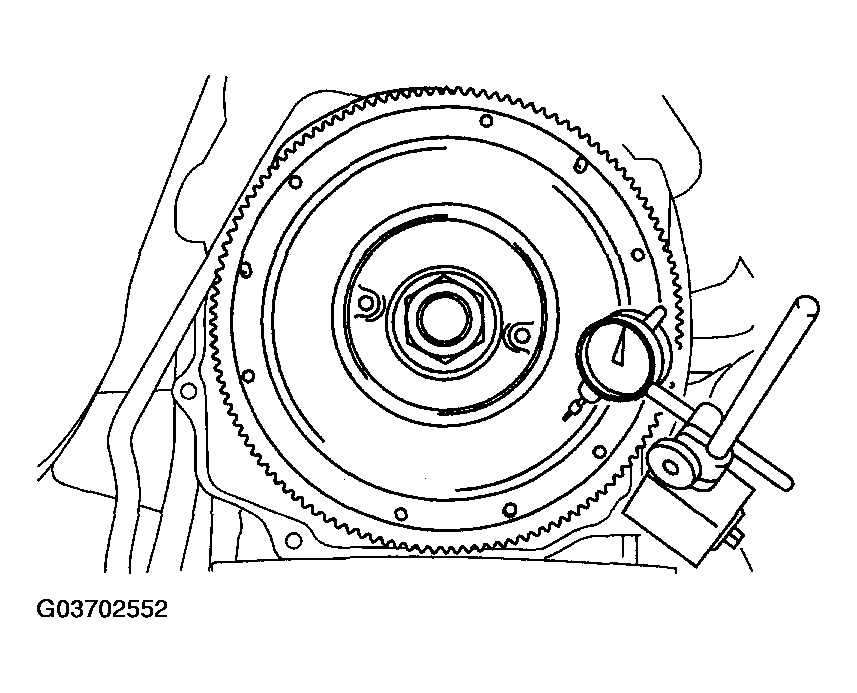

Fig 2: Measuring Runout Of Clutch Disc Contacts Surface Using Dial Gauge
Courtesy of MAZDA MOTORS CORP.

Maximum runout
1. 0.2 mm {0.008 in}
- If it exceeds the maximum specification, replace the flywheel.
