Flywheel Installation Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Install the key to the eccentric shaft.
Align the flywheel key groove with the eccentric shaft key and install.

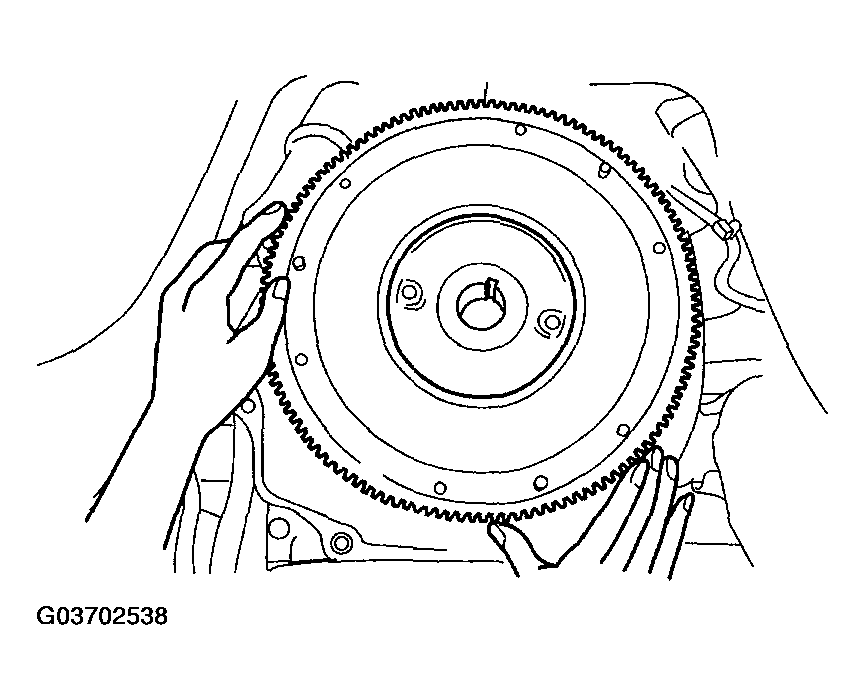

Fig 1: Installing Flywheel
Courtesy of MAZDA MOTORS CORP.
Install the SST to the flywheel.
Apply silicone sealant to the locknut thread.

Fig 2: Applying Silicone Sealant To Locknut Thread
Courtesy of MAZDA MOTORS CORP.
Tighten the locknut using the SST .

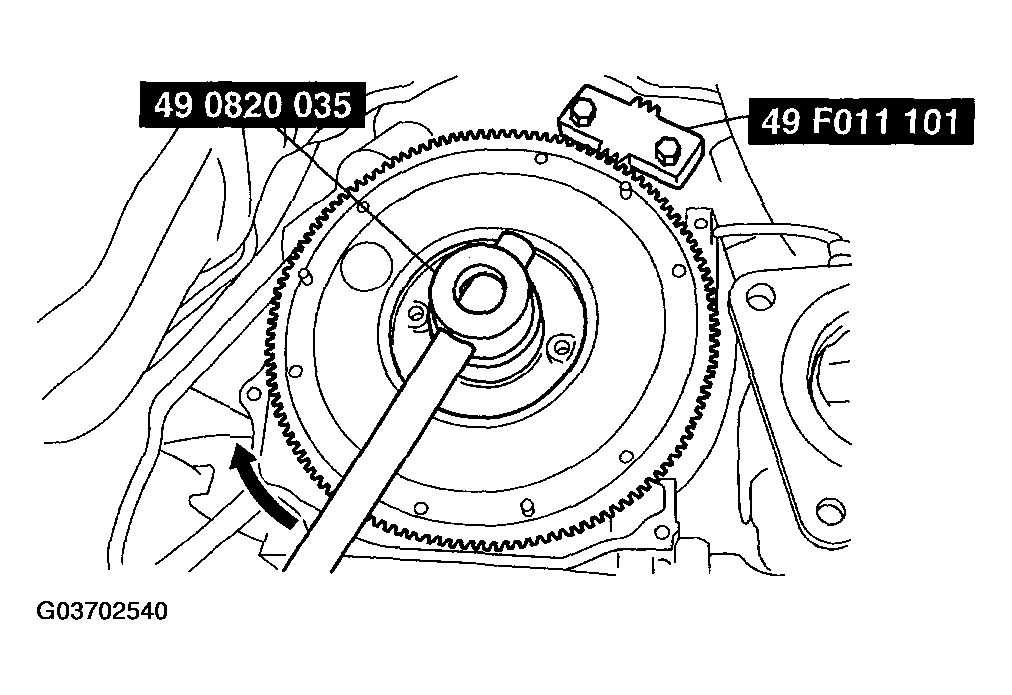

Fig 3: Tightening Locknut Using SST
Courtesy of MAZDA MOTORS CORP.

Tightening torque
1. 392-490 N.m
2. {40.0-49.9 kgf.m, 289-361 ft.lbf}
CAUTION:
- Remove the seal protruding from the threads without it becoming caught in the pilot bearing.
