Clutch Cover Installation Note
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Align the clutch cover with the flywheel knock pin and install.

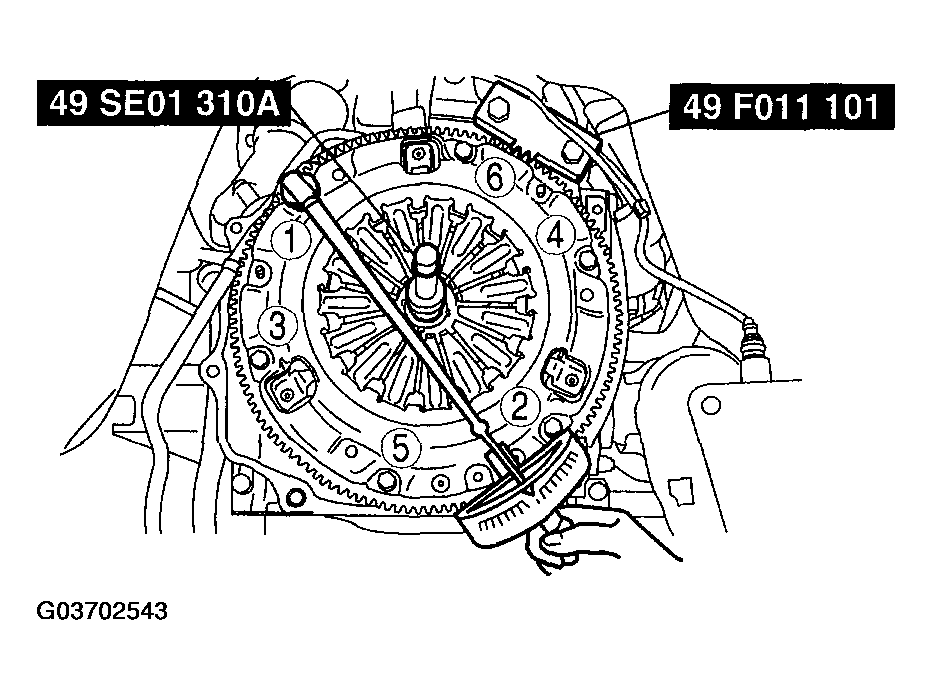

- Tighten the bolts evenly and gradually in the order shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Tightening torque
- 22.1-33.1 N.m
- {2.26-3.37 kgf.m, 16.3-24.4 ft.lbf}
