Clutch Pedal Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
Install in the reverse order of removal.
Inspect and adjust the clutch pedal.
(See CLUTCH PEDAL ADJUSTMENT .)

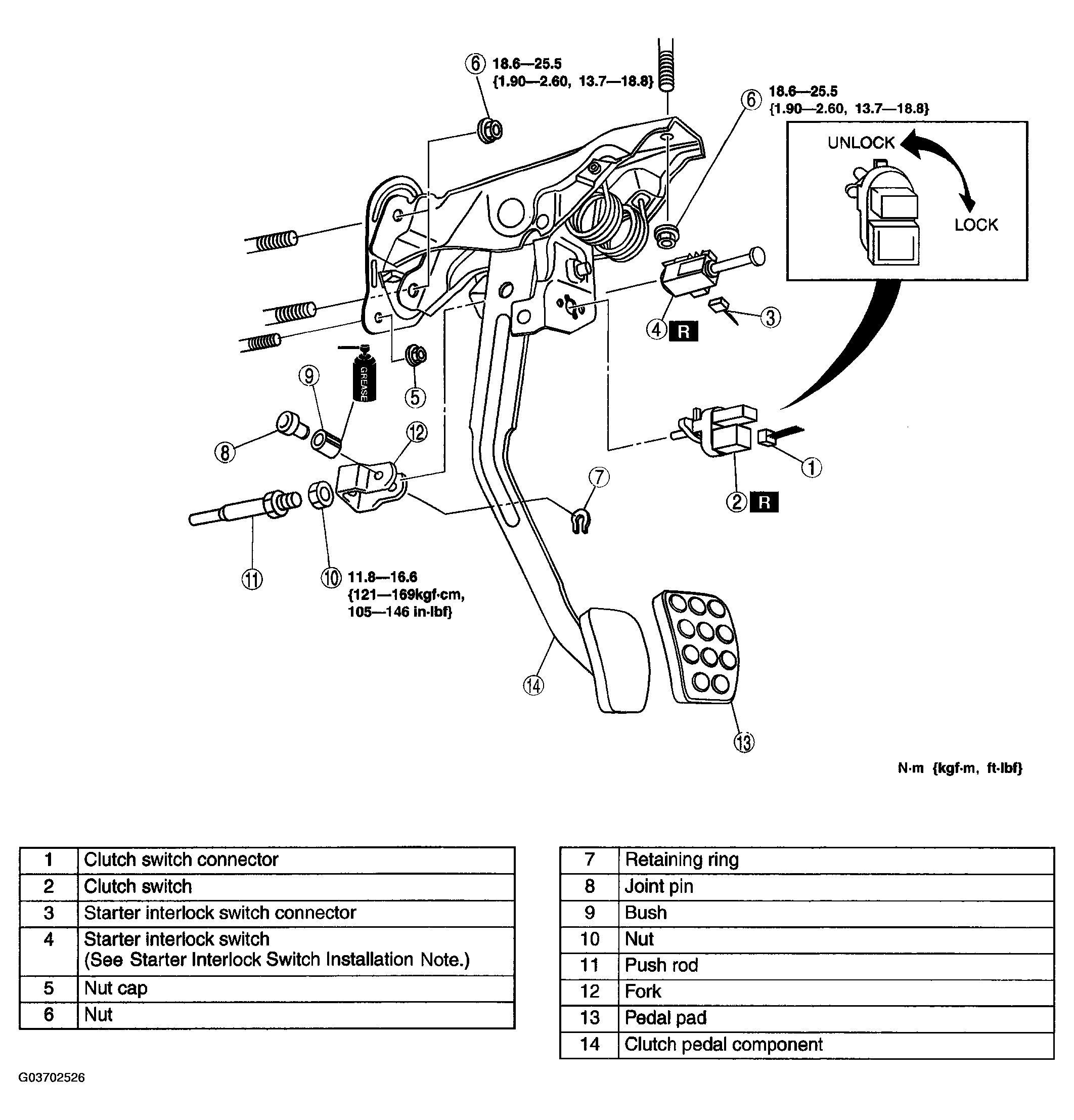

Fig 1: Removing Clutch Pedal With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
