Clutch Pedal Play Inspection/Adjustment

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Lightly depress the clutch pedal by hand until clutch resistance is felt and then measure the pedal play.
Standard
1. Clutch pedal play
2. 5-15 mm {0.20-0.59 in}
1. Clutch pedal push rod play At push rod setting line :
2. 0.1-0.5 mm {0.004-0.020 in}
3. (Reference value)
4. At pedal pad :
5. 0.5-2.9 mm {0.020-0.110 in}
If it is not within the specification, loosen locknut C and turn push rod D to adjust the pedal play.
Remeasure the pedal play and, if it is within the specification, tighten locknut C.

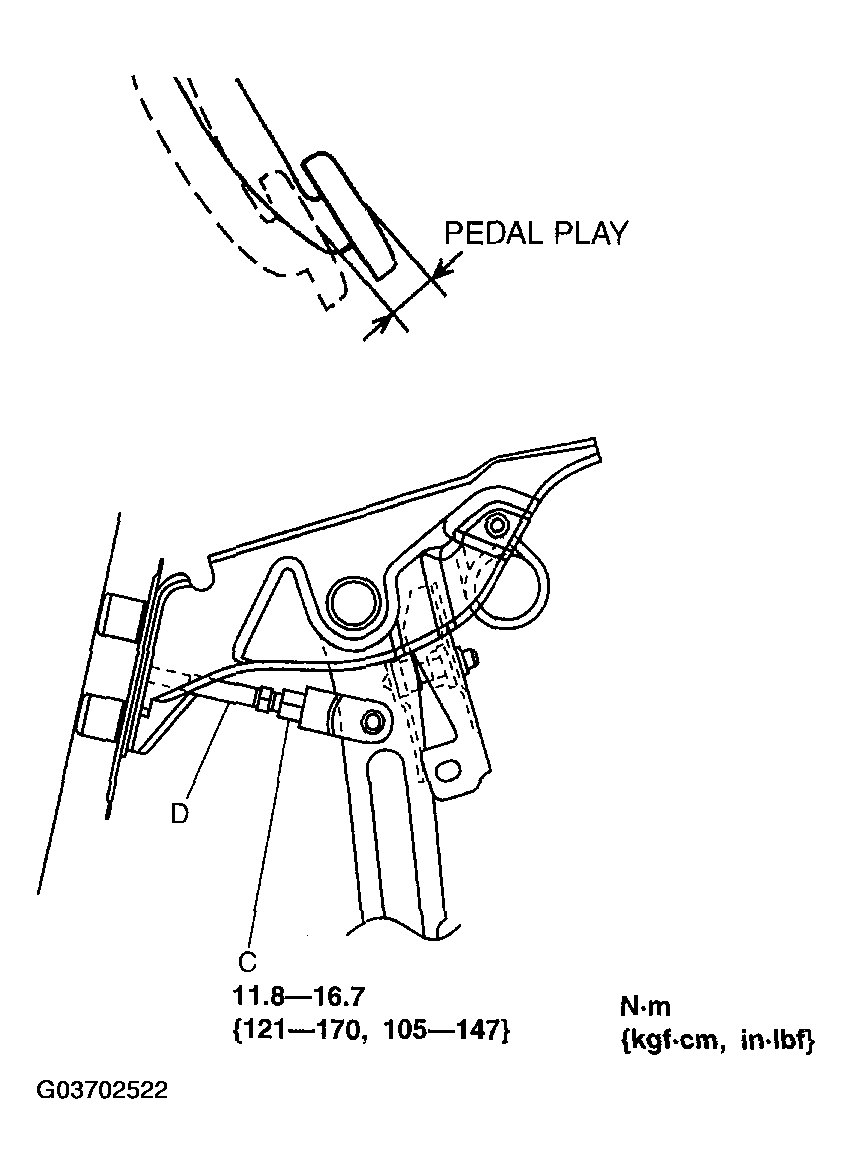

Fig 1: Adjusting Clutch Pedal Play With Torque Specification
Courtesy of MAZDA MOTORS CORP.
