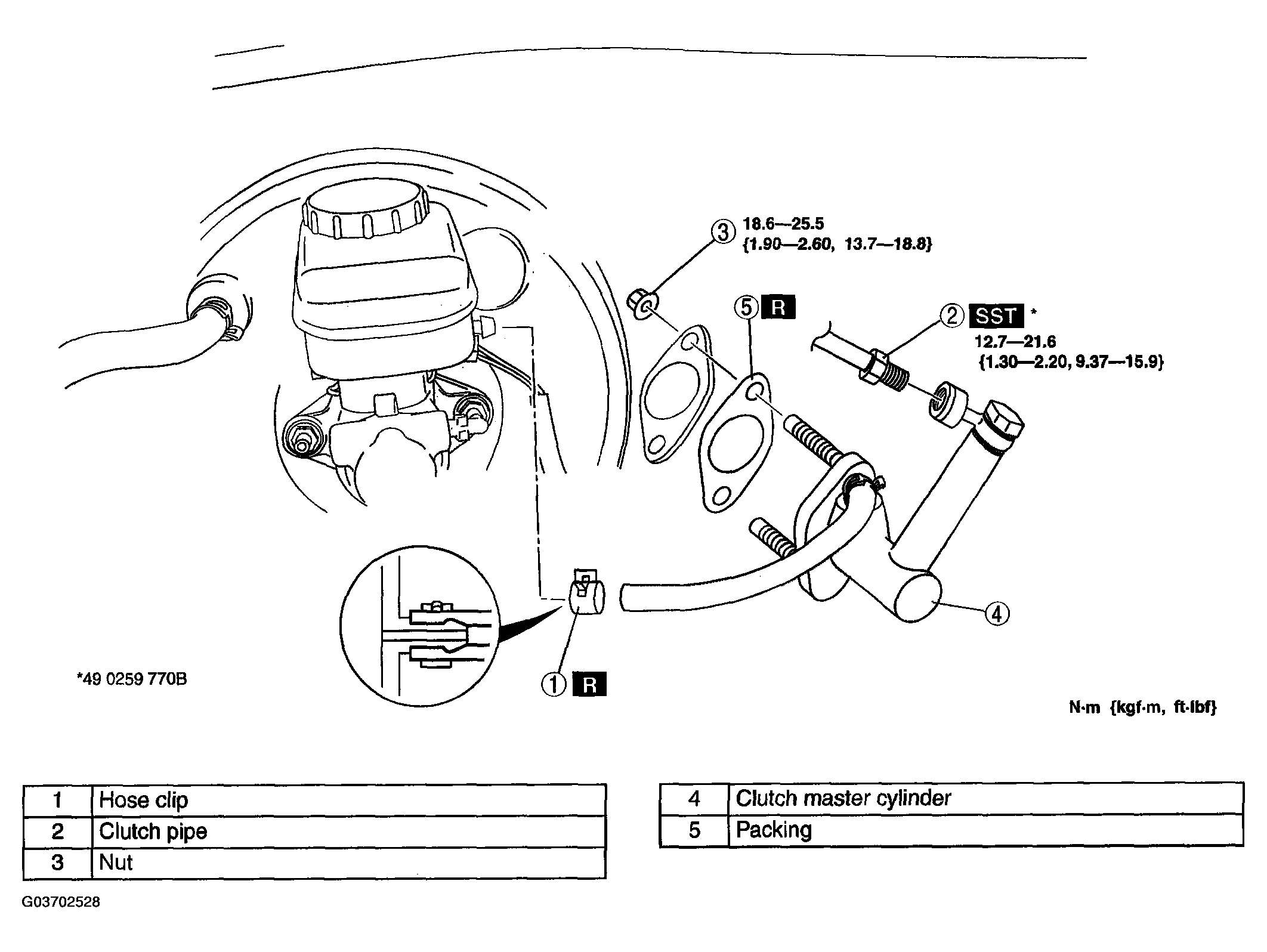

Clutch Master Cylinder Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. If it is spilled, wipe it off immediately.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Bleed the air from the system.
(See CLUTCH FLUID REPLACEMENT .)
- Inspect and adjust the clutch pedal.
(See CLUTCH PEDAL ADJUSTMENT .)
